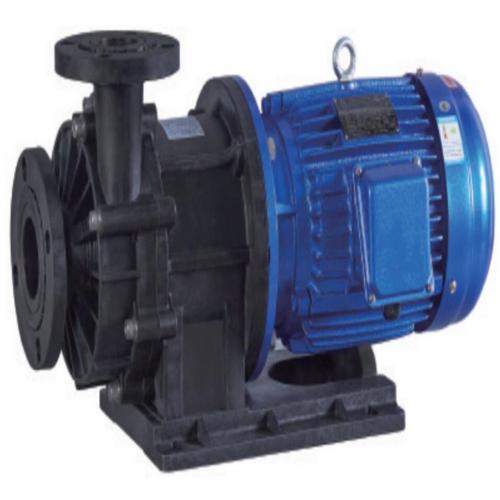

Plastic magnetic pump driven by 0.5HP -10HP motor MPH-422 Description

MPH Plastic magnetic pump driven by 0.5HP-10HP motor

Acid and alkali resistant plastic magnetic pump is suitable for all acid and alkali etc. clean chemical liquid pumping, circulation, etc. The pump is widely used in electroplating, electronics, chemical, leather, dyeing and finishing wastewater, waste gas and other industries.

Magnetic driving coupling, without shaft seal, no leakage

Pump case, impeller assembly, isolating sleeve: FRPP reinforced polypropylene plastic.

Pump shaft: alumina ceramic

Seal ring: FKM/EPDM

Modelinlet(mm)outlet(mm)Max.flow(LPM)Max.head(m)Standard   flow(LPM)standard head(m)Power(KW)Voltage(V)MPH-400404028012.51508.50.37380MPH-401404033018200120.75380MPH-42250404002320018.51.5380MPH-42350405002430020.52.2380MPH-550655060025400223380MPH-650655087030500263.7380MPH-8508065110025800185.5380MPH-86080651400281100217.5380

flow rate	200LPM-1400LPM
head	8-21M
pump material	reinforced polypropylene PP
