• Product Name: NYP High viscosity fluids transfer pump rotor pump
• Model Number: NYP-50
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

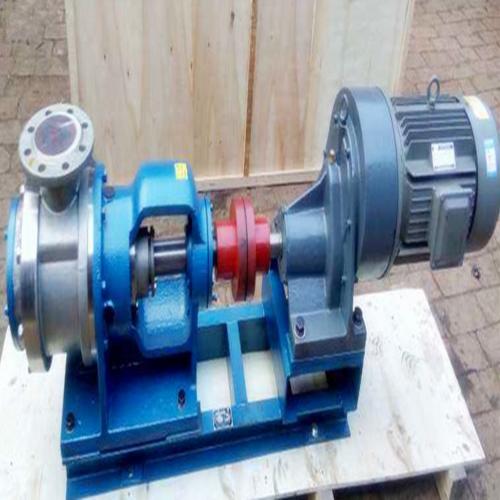

NYP High viscosity fluids transfer pump rotor pump NYP-50 Description

NYP high viscosity rotor pump :

NYP high viscosity pump, high viscosity rotor pump application range

Medium temperature: -10 to 150degree Celsius

Medium viscosity: 1.0 CST to 6 000000 CST

high viscosity pump application:

High viscosity pump is suitable for petroleum, chemical, coating, grease, medicine, dye, food and other industries.

NYP high viscosity rotor pump is used to convey organic acids, fatty acids, alkaline, caustic salts, sodas, polymers, soaps, shampoos, animal fats, vegetable oils, chocolates, and other specialty fluids.

high viscosity pump product advantages:

1 high viscosity pump mainly consists of inner and outer rotor, shaft, pump body, pump cover, bracket, seal, bearing and other components.

2.Smooth liquid transportation, no pulsation, small vibration and low noise.

3 high viscosity pump speed and flow are for linear function relationship. Flow can be appropriately changed by changing the speed of pump. High viscosity pump is especially suitable for high viscosity medium. High viscosity pump shaft end is with mechanical seal.

4 . No leakage.

5.NYP high viscosity rotor pump is Suitable for outdoor installation and the fully enclosed magnetic coupling cavity can protect the external magnet from contact with moisture or external materials.

6.A variety of standard sliding bearing materials are available: cast iron, copper, graphite, tungsten carbide.

7.The standard magnet material is ndfeb alloy. Optional samarium cobalt magnets allow operating temperatures of 250 degrees Celsius.

8 .The pump can be sent in both directions.

9. External heating jackets for the front cover and magnetically coupled shielding sleeve are standard optional components.

10.Real back pull design.

11.Standard flange type connection. It is ok to only provide pump head.

12 The pump has internal and external cover protection.

13. Cooling system: integrated cooling circulation system inside pump, no external cooling required.

14.Dynamic axial balance system reduces axial load to low, reduces power consumption and prolongs service life.

15.A fully enclosed magnetic coupling cavity adds protection.
