NL river mud sludge slurry immersible drainage pump 65NLA-16 Description

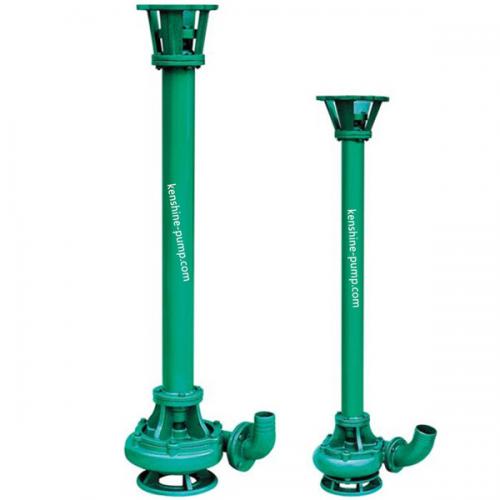

NL Vertical mud pump

NL vertical slurry pump is a single-stage vertical centrifugal pump.The main components are volute, impeller, pump seat, pump shell, supporting cylinder, motor seat, motor and so on. Volute, pump seat, motor seat, impeller nuts are casted of pig iron with good corrosion resistance, convenient processing technology.

The impeller is for semi-open impeller and made of forged cast iron so it has high strength and corrosion resistance, Convenient processing, good pass ability and high efficiency.

In order to reduce weight and reduce the amount of turning, the pump shaft is made of high-quality carbon steel cold drawing round steel. Four skeleton oil seals and shaft sleeves are installed in the pump seat to prevent shaft wear and prolong shaft service life.

NL mud pump can be used vertically or tilted, occupying a small area, volute should be immersible in the working medium to work, easy to start, do not need water diversion, rotation direction for pump is clockwise, viewed from the motor end.

Application:

1, NL vertical slurry pump in the countryside is mainly used for river mud, feces, river water, slurry feed, suction and irrigation, and drainage, drought resistance, it can also be used for river mud, fertilizer production. It can also be used as a rural simple flow fire pump. It can also be used as fishpond and water clearing, fishpond oxygen.

2, NL mud pump can be used for municipal, chemical industry, printing and dyeing, medicine, shipbuilding, casting, food and other industries to pump thick liquid, dirty liquid, paste body, quicksand and urban river flowing sludge. It can be used for coal mine drainage containing small clay gravel fluid.

3, Used with the high-pressure pump, water gun with the formation of hydraulic mechanized earthwork unit, NL mud pump can be used for land leveling, river, pond, air defense, underground engineering excavation and transport.

4, NL vertical mud slurry pump is a single-stage single-suction centrifugal pump is used in mining, paper making, printing and dyeing, environmental protection, graphite, mica, gold, ceramic, oil refining, petroleum, chemical industry, farms, saltworks, iodine, dyeing, brewing, food, chemical fertilizer, coking mill plant, building, marble factory, mine, mud, sand, muddy ponds, sludge pond and dreggy liquid to transport thick pulp thick liquid, charging and aerosols in sewage homework. It also can make coal mine drainage and the fluid containing clods.

5. If it is combined with high-pressure pump and water gun to form a hydraulic mechanized earthmoving engineering unit, it can be used for land leveling, dredging of river and pond, excavation and transportation of small water conservancy projects, as well as urban air defense works, and the following works:
