• Product Name: NB Single stage centrifugal slurry pump not clogging pump
• Model Number: NB80-15
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

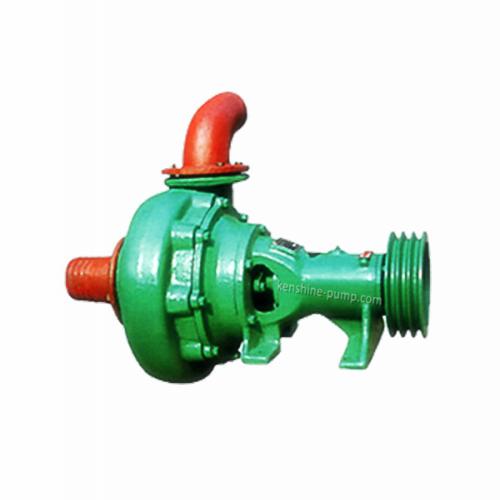

NB Single stage centrifugal slurry pump not clogging pump NB80-15 Description

NB Series high efficiency and energy saving sand suction pump is single stage and single suction horizontal centrifugal pump, which is widely used to pump the mud with sand grains at the bottom of rivers and lakes, sludge and impurities in pits and ponds, etc. It is also used for supporting operation of water well drilling rig.

Wear resistant cast iron, long service life; Simple structure, reasonable design, convenient maintenance and balanced operation.

High efficiency and energy saving sand pump is a new product successfully developed according to the characteristics of vertical mud pump in our factory.

Features: good performance, high efficiency, long life, simple structure, easy maintenance, easy to use.

It can pump the mud with high sand content and anti-blocking. It is widely used to absorb the yellow sand at the bottom of rivers, lakes and silt in ponds. Also it is as the ideal energy saving sand pump together with the water well drilling rig and the foundation .

Flow rate: 40 to 400m3/h

Head:10 to 28m

Caliber:65 to 100mm

Model    Flow(m3/h)    Head(m)    Poower(kw)    Speed(rpm)    Weight(kg)

NB65-10    40    10    3-4    1800    40

NB65-35    35    28    11    2200    40

NB75-20    60    10    3    1430

NB80-15    60    15    5.5-4    1600    65

NB80-28    60    28    11-4    1500    85

NB100-9    100    9    7.5-4    1450    115

NB100-16    140    16    15-4    1450

NB150-20    300    12-30    18.5-37    1200

NB150-150    150    9    1000    150

NB150-A    145    12    20-24    1450

NB150-B    200    20    22    1450

NB150-C    200-250    17-26    22-30    1470

NB200-20    400    23    30-4    1750
