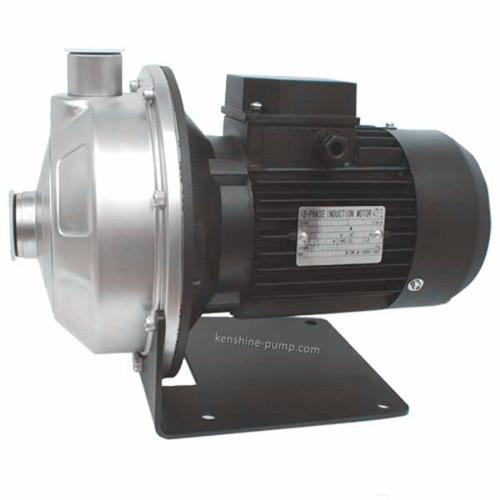

MS Stainless steel stamping single stage centrifugal pump

MS Stainless steel stamping single stage centrifugal pump
  • Product Name: MS Stainless steel stamping single stage centrifugal pump
  • Model Number: MS250/1.5
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

MS Stainless steel stamping single stage centrifugal pump MS250/1.5 Description

MS series light duty stainless steel horizontal single-stage centrifugal pump is a single-stage impeller centrifugal pump, which has the characteristics of axial absorption and radial drainage.

Compact structure, direct connection between pump and motor, coaxial installation;

Convenient connection, equipped with screw inlet and outlet;

Light weight, the main parts are made of stainless steel sheet metal stamping

Light corrosion resistance, the flow parts : AISI 304 or AISI 316 stainless steel material.

Pumped liquids:

A thin, clean, nonflammable, non-explosive liquid that does not contains solid particles or fibers etc impurity

Can transport light corrosive medium (related to the content of chloride ion in the medium, the concentration of acid or alkali, whether the friction material of rubber and mechanical seal has corrosion, etc.)

The density of the medium should not be greater than water, viscosity should be close to water. Otherwise, high-power motor is needed.

operating conditions:

Liquid temperature: -10 to 85 degree Celsius;

Ambient temperature: maximum +40 degree Celsius;

Altitude: maximum 1000m;

Maximum working pressure: 8 bar;

Application scope:

Pressurization and transportation of water or other liquids for industrial and civil use;

Water treatment system

Water circulation system

Agricultural irrigation

In other fields

Model meaning:

Stainless steel horizontal single stage centrifugal pump

MS 250/1.5

MS means for light duty stainless steel horizontal single stage centrifugal pump

250 means the rated flow rate (1/min)

1.5 means the rated power (kW)

Performance range:

Flow:1.2m3/h to 27m3/h
Head:11m to 40m
Power:0.37kW to 2.2kW
Liquids temperature:-10 to 85 degree Celsius
Frequency:50Hz/60Hz
