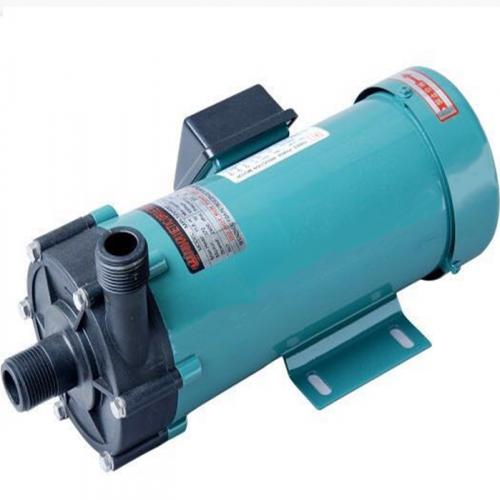

MP,MPH plastic magnetic pump MP-70RM Description

MP plastic magnetic pump adopts the design of no shaft seal. The pump body is completed sealed and has no leakage to avoid environment pollution. The pump can be made of reinforced polypropylene plastic (FRPP or PVDF) with good corrosion resistance.

MP Series pump has the output flow rate from 11LPM to 220LPM with hose inlet outlet connection or thread connection.

The applicable temperature for FRPP pump is below 80degree Celsius.

PVDF pump is suitable for fluids below 100 degree Celsius.

Pump case: FRPP

Shaft bushing: carbon fiber filled PTFE

Impeller assembly: FRPP/strontium ferrite

Active magnetic cup: strontium ferrite

Passive magnetic: strontium ferrite

Isolating covering: FRPP

Pump shaft: alumina ceramic

Thrust ring: alumina ceramic

Sealing ring: FKM/EPDM
