MPH plastic magnetic pump MPH-422 Description

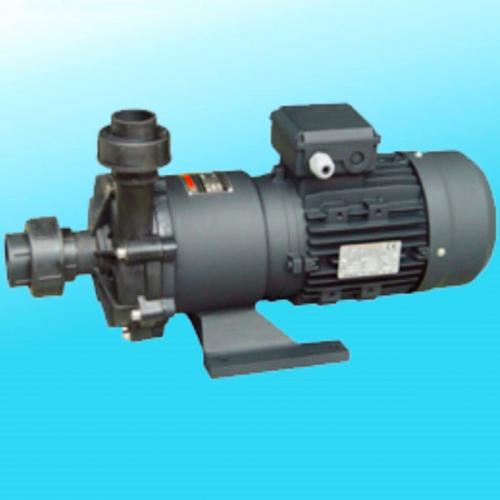

MPH Plastic magnetic pump

MPH plastic magnetic pump is in accordance with JB/T 7742-1995 standard for small magnetic transmission centrifugal pump and flow components adopt PPS (PPS) which is not subject to most acid, alkali, salt erosion (except oxidizing acid such as sulfuric acid, nitric acid and aqua regia) and its performance is close to the chemical performance of ptfe, in most organic solvents under 100 ℃, ability of gasoline and methanol mixture in particular. It is the ideal pump in the acid and alkali industries conveying.

The shaft and the impeller of MPH plastic magnetic pump are respectively assembled with magnetic materials and attract each other, without the need to match with the traditional mechanical bearings, so it is completely sealed. The rotating torque of the motor is driven by the attraction of the active magnetism and the driven magnetism to drive the blades to work. The biggest disadvantage of the magnetic drive pump is that it is absolutely forbidden to run in the case of lack of liquid, otherwise the whole machine will be destroyed to add unnecessary trouble and annoyance to the user.

MPH plastic magnetic pump can have dry running. It adopts a special formulation of ceramic bearings specially designed, with strong abrasion resistance and corrosion resistance, so that its advanced and safe performance can be reliably guaranteed. Magnetic drive circulating pump adopts no shaft seal design, completely avoid the traditional mechanical shaft seal pump existence of liquid leakage caused by corrosion after pollution defects. It is the most ideal liquid transport pump in industrial equipment.

modelinlet(mm)outlet(mm)Flow(LPM)Head(m)Motor power(KW)MPH-40040401508.50.55MPH-4014040200121.1MPH-422504020018.51.5MPH-423504030020.52.2MPH-5506550400223MPH-6506550500264

flow rate	150-500LPM
head	8-26M
pump material	PPS plastic
