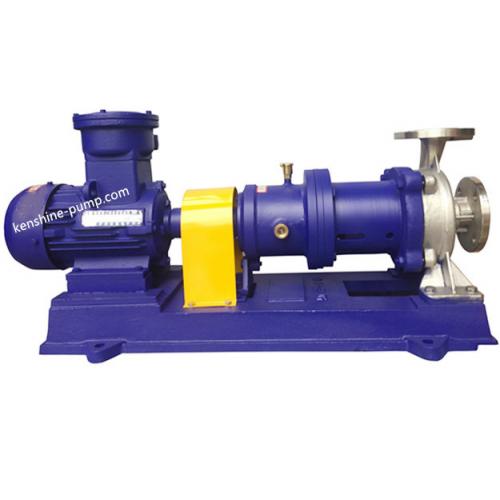

• Product Name: magnetic pump with cooling and heat insulating device
• Model Number: CQB80-65-160G
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 300SETS PER MONTH/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

magnetic pump with cooling and heat insulating device CQB80-65-160G Description

Working principle:

Cqb-g magnetic head insulated centrifugal pump Is the application of modern magnetics principles, the use of permanent magnet magnetic transmission to realize non-contact transmission of torque of a new type of pump. The motor drives the outer rotor (the outer magnetic steel) assembly rotates, through the role of magnetic field lines through the space sleeve to drive inner rotor (inner magnet steel assembly) and impeller synchronous rotating .Because the media is closed in the space sleeve to achieve the purpose of leakfree pumping medium.

High temperature pump with cooling device (heat insulating device)

Space sleeve of pump body is designed with the double cooling (heat insulation) devices. High temperature magnetic pump can use water, nitrogen, etc. as the cooling medium in the pump body to keep the medium into the pump in low temperature. Steam can be added into the pump body for heat preservation to ensure the medium in the process of conveying not condensation, crystallization and evaporation, completely solve the mechanical transmission shaft seal of pump leaks, cooling, crystallization and evaporation, completely solve the mechanical transmission shaft seal of pump leaks, cold temperature, gasification etc.

Advantages:

no leakage, no pollution, high temperature resistance, heat insulation, high efficiency and energy saving of new industrial pump.

Application:

CQB-G high temperature magnetic pump is Widely used in petroleum, chemical, alkali, smelting, rare earth, pesticide, papermaking, electroplating, electrolysis, radio, scientific research, national defense industry and other production processes to transport corrosive liquid. It is especially suitable for flammable, explosive, volatile, toxic, high temperature, strong alkali, organic solvent and precious liquids etc. transport.

Working conditions:

System working pressure is less than 1.6MPA

Liquids density is not more than 1840kg／m3, Viscosity is not more than 30cm2/S, Liquids without solid grain or fiber

Liquid temperature is up 300Degree Celsius.

Pump has the structure of back pull out and is connected motor by shaft coupling.

Performance range:

Flow: 3.2m3/h -100m3/h

Head:20 to 80m

Motor power: 1.5KW-55KW

Pump material: Stainless steel
