• Product Name: Lug Type Valve Body
• Model Number: Lug Type Valve Body
• Brand Name: oem
• Place of Origin: tianjin, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000/month
• Payment: EXW/FOB/C&F/CIF
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

Lug Type Valve Body Lug Type Valve Body Description

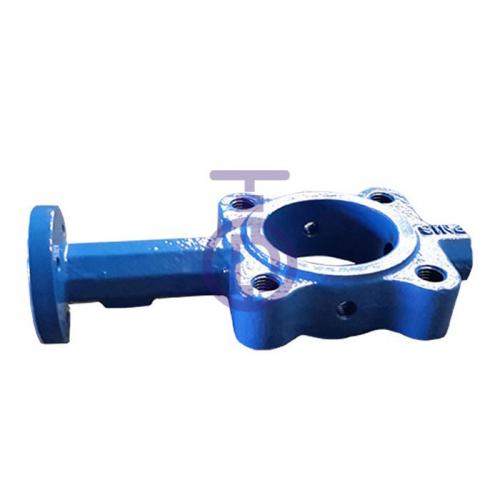

Lug Type Valve Body

Body: Ductile Iron/ Cast Iron

Resilient Seat: EPDM/ NBR/ VITON

Actuation Options: Gear box/ Lever/ Pneumatic/ Electric

The Choice of the Material

BODY

Cast iron/Ductile iron/AL-bronze/Stainless Steel/Duplex Stainless Steel

DISC

Ductile iron/AL-bronze/CF8/CF8M/SS201/SS302/SS316

BONNET

Ductile iron/AL-bronze/Duplex Stainless Steel/CF8/CF8M

STEM

Carbon steel/SS410/SS416/SS420/SS304/SS316/MONEL K500

SEAT

NBR(buna-N)/EPDM/PTFE/Nature Rubber/VITON/Hypalon

SHORT BUSHING

PTFE

LONG BUSHING

PTFE

O-ring

NBR/EPDM

PIN

SS403/SS316/MONEL K500/Duplex Stainless Steel

Advantage

Applied to the end of pipe. The suitable media are water, oil and gas;  mainly used for industrial Valve and marine valve.

If you want to find lug type butterfly valve, bronze castings, valve disc factory in China, you can choose us. we have a whole set of quality management system. If you are interested in our products, pls feel free to contact us.
