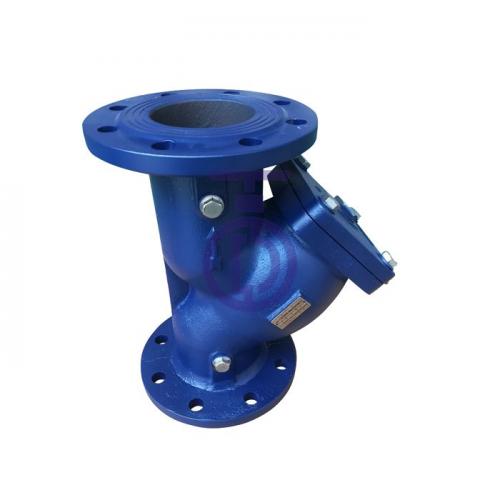

PN16 Y-Strainer
- Product Name: PN16 Y-Strainer
- Model Number: PN16 Y-Strainer
- Brand Name: tanghai
- Place of Origin: tianjin, China
- Minimum Order Quantity: 1
- Supply Capacity: 1000/month
- Payment: EXW/FOB/C&F/CIF
- MemberShip: Free Member
- Inquiry Now
PN16 Y-Strainer PN16 Y-Strainer Description
PN16 Y-Strainer
Y-Strainers are manufactured to remove unwanted debris from the piping system that may cause damage to expensive equipment downstream.
Y-Strainers can be applied in either horizontal or vertical pipelines as long as the straining element is placed in the downward position, with the arrow matching the direction of flow.
Body: Ductile Iron A536 65-45-12 with Class 125 ANSI B16.1 Flange
Pressure: 200 PSI @ 150°F
Screen: 304 Stainless Steel
Sizes: 2", 2 1/2", 3", 4", 6", 8", 10"
Temperature: 185°F
Face to Face dimensions Conform to EN558-1 list1
Flange dimensions Conform to the request of client's
Testing Conform to EN12266-1
If you have any question on PN16 Y strainer, valve strainers, cast iron strainer. We will give the professional answers to your short questions. If you need, welcome to contact us to know more!
MATERIALS OF PARTS
Number
Part Name
Material
1
Body
EN-GJS-450-10
2
SCREEN
SS304/SS410
3
Bonnet
EN-GJS-450-10
4
Plug
Mn-Brass
5
Washer
Graphite
6
Bolts
Steel
7
Washer
Steel
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
450
500
600
L
123
150
160
180
200
230
290
310
350
400
480
600
730
850
980
1100
1200
1250
1450
D
95
105
115
140
150
165
185
200
220
250
285
340
405
460
520
580
640
715
840
DI
65
75
85
100
110
125
145
160
180
210
240
295
355
410
470
525
585
650
770
D2
46
56
65
76
84
99
118
132
156
184
211
266
319
370
429
480
848
609
720
b
14
16
16
18
18
20
20
22
24
26
26
30
32
32
36
38
30
31.5
36
n-d
4-14
4-14
4-14
4-19
4-19
4-19
4-19
8-19
8-19
8-19
8-23
12-23
12-28
12-28
16-28
16-31
20-31
20-34
20-37
f
2
2
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
5
H
80
81
81
100
113
125
150
169
213
250
281
357
460
532
645
698
802
845
998
Plug
1/2''
1/2''
1/2''
1/2''
1/2''
1/2''
1''
1''
1''
1-1/4''
1-1/4''
1-1/2''
2''
2''
2''
2''
2''
2''
2''
