• Product Name: LPG side channel Multistage centrifugal pump
• Model Number: LPGP-65
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

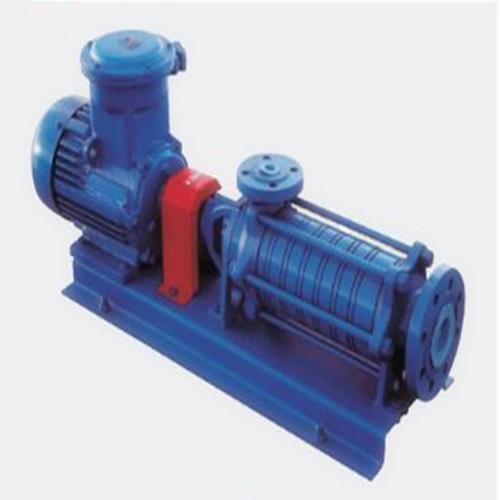

LPG side channel Multistage centrifugal pump LPGP-65 Description

LPGP-65 LPG multistage pump is a centrifugal side channel pump with a horizontal structure, a total of 6 stages, the shaft is mechanically sealed, no cooling. LPGP-65 multistage pump is used to transfer LPG, especially for liquids with high pressure difference, low cavitation NPSH and gas content up to 50 percent, such as LPG pumped from underground tanks. The pump USES a pre-compressed turbine at the suction end, which makes it suitable for use in the case of low cavitation NPSH allowance. positive suction heads is lower than 0.5 m. Therefore, the pump can be used in bad air suction conditions. Application: 1. Bottling 2. Pump liquefied gas from underground tanks; 3. Load and unload large quantities of gas-filled tanker cars, tanker cars; 4. Liquefied gas pump gas recovery

Technical Parameter:

Max. Capacity: 42 m3/h

Max. Discharge. Pressure: 40 bar

Max. Viscosity: 100 cSt

Temperature Range: -40  to  220 degree celsius

Model    LPGP-65    LPGP-150

Medium    LPG

Working   temperature    -32 to 60 degree celsius

Inlet/outlet   diameter    DN65/DN40    DN40/DN25

Motor    380V,50HZ/4KW/1450RPM    380V,50HZ,5.5kw/1450rpm

Number of   stages    6    6

Connecting   flanges    DIN 2501 PN40    DIN 2501 PN40
