LN81W Series Bellows Globe Control Valve LN81W Description

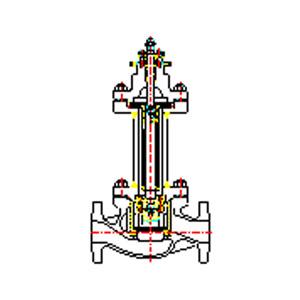

LN81W Series Bellows Globe Control Valve

LN81W / 82 series bellows single-seat control valve, based on LN81/82 series valve single-seat non pressure balance structure on the basis of increase the bellows seal structure, compression elastic stainless steel bellows in bearing parts connected to the valve stem in together, and packing of double seal, eliminate medium leakage hidden trouble. Suitable for differential pressure is highly toxic, flammable, explosive, volatile and the adjustment of the rare and precious metal medium.

bellows single-seat control valve TECHNICAL PARAMETERS

Nominal Size

DN15 ~ DN300

Pressure Rating

PN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110)

Operateing Temperature

-46℃~ 350℃

Characteristics

Equal percentage, linear, quickly open

Rangeability

30:1、50:1、 100:1

Seat Leakage Class

ANSI B16.104: IV、V、VI

Body Material

WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.

Trim Material

630/316/316+ST/316nitriding/316+Ni60/316+WC etc.

Seal Material

PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.

Single seated globe valve manufacturer:Zhejiang SUPCON Fluid Technology Co., Ltd.
