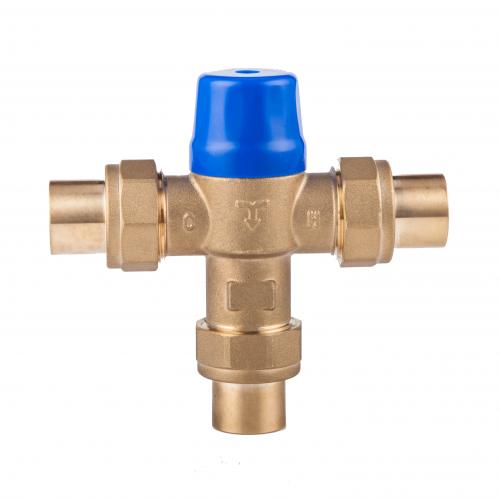

Lead-free Brass Material Thermostatic Radiator Mixing Valve
- Product Name: Lead-free Brass Material Thermostatic Radiator Mixing Valve
- Model Number: JD-HSF004
- Brand Name: JD
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1000
- Supply Capacity: 100000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union
- MemberShip: Free Member
- Inquiry Now
Lead-free Brass Material Thermostatic Radiator Mixing Valve JD-HSF004 Description
Spring Stainless Steel
Seal Components EPDM
Control Knob ABS
Performance Adjustment range
35–55℃,38–46℃
Accuracy ±2℃
Max. working pressure (static) 10 Bar
Max. working pressure (dynamic) 5 Bar
Max. inlet temperature 100℃
Max. inlet pressure ratio (H/C or C/H) 2:1
Min. flow rate for stable operation 3.7 l/min
Performance to standards EN1111,EN 1287
Connections 3/4” M
Minimumtemperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance 10°C
| Max. working pressure (static) | 10 Bar |
|---|
