AQUA600-3 Series of Motorized Ball Valve
- Product Name: AQUA600-3 Series of Motorized Ball Valve
- Model Number: AQUA600-3
- Brand Name: OEM
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 100
- Supply Capacity: 10000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union
- MemberShip: Free Member
- Inquiry Now

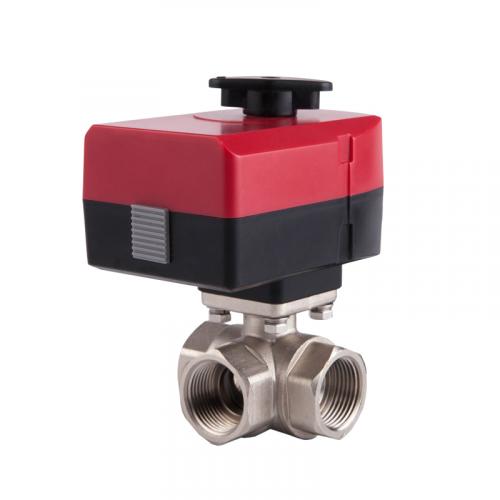

AQUA600-3 Series of Motorized Ball Valve AQUA600-3 Description
The new product is to be met the requirement of customers with compact size, large torque, simple operation and free maintenance, convenient for installation under different working conditions. In addition, the actuator is equipped with a manual handle, so it can open or close valve in case of the power cut or other emergency.
ItemPort sizeInchBody size(mm)N.W（g）
LH1H2
2wayAQUA600-2-15DN151/25529.543.5230AQUA600-2-20DN203/4”603351.5310AQUA600-2-25DN201”70.53759.5490AQUA600-2-32DN321-1/4”85.54267.57803wayAQUA600-3-20DN20 3/4”643348.5380AQUA600-3-25DN251”743758580AQUA600-3-32DN321-1/4”87.54267.5800
| Driving mode | Electric/Manual,with Position indicator |
|---|---|
| PN Class | PN16 |
| Valve characteristic | 90°Rotary |
| Power supply | AC230V /24V AC |
| Torque | 12 Nm |
| Running time | 33～36 seconds |
| Valve platform | ISO5211（F03） |
| Valve material | Brass Ball Valve (Nickel Plated) |
