• Product Name: LC vertical multistage submersible centrifugal long shaft pump
• Model Number: 200LC-23
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

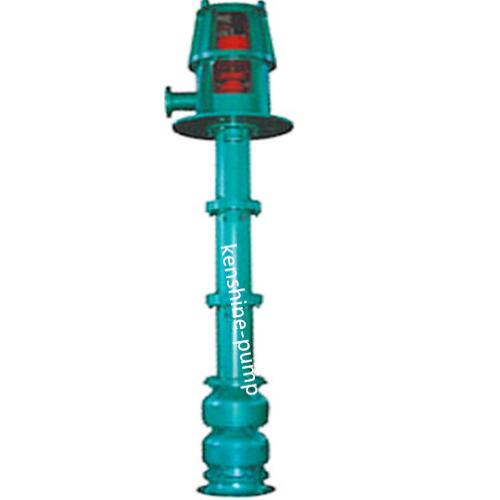

LC vertical multistage submersible centrifugal long shaft pump 200LC-23 Description

LC multistage long shaft submersible well pump

LC type vertical long shaft multistage submersible well pump is used to Convey clean water and sewage containing certain solid particles (such as iron filings, sand particles, pulverized coal, etc.), corrosive industrial wastewater and seawater etc.

The temperature of pumped liquid shall not exceed 80℃.It is widely used in primary water treatment plant, sewage treatment plant, metallurgical steel industry (especially the iron sheet transported by the whirlpool), power plant, mine, municipal engineering and farmland water irrigation and drainage project.

Model meaning:

200LC-23A×2-L H

200 -- the diameter of the water pump outlet is 200mm;

LC - vertical long shaft pump

23 -- when the impeller is not cut, the single-stage design point head of the pump is 23m (the total head of the pump = single-stage head × the impeller stage

A -- impeller is cut for the first.

2 -- the impeller stage is 2

L -- Submersible depth (m);

H - pump with sleeve tube

Performance range:

Q: 85-5600m3/h

H:10-100m
