• Product Name: L Large discharge capacity seawater pump
• Model Number: L-150
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 300SETS PER MONTH/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

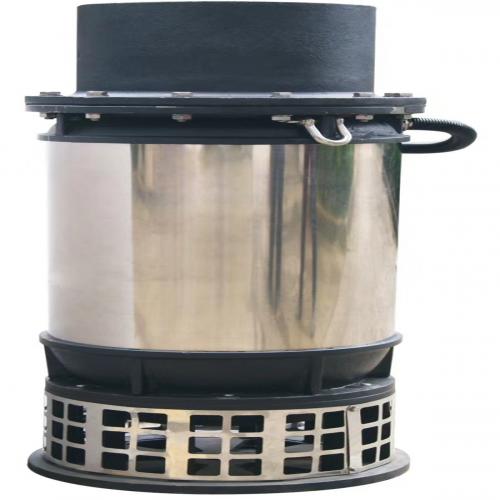

L Large discharge capacity seawater pump L-150 Description

L Large discharge capacity seawater pump

Pump structure is solid, dry motor, double-group mechanical seal, excellent waterproof, impeller diversion device, smooth water flow, pump can be used for long-term operation with waterproof grade IP68.

Light weight, easy to operate and easy to maintain

Centrifugal type, axial flow, oblique flow impeller design, low head at large water volume, low energy consumption is in line with economic benefits

ALBC3 aluminum bronze material, both seawater corrosion resistance and abrasion resistance, less sand wear.

Application:

Aquaculture fisheries, agricultural irrigation, low-lying areas flooded out

Landscape waterfall water

Hydraulic engineering equipment

Other USES of large water supply and drainage

Liquid temperature: 0 to 40

Liquids: agricultural irrigation, aquaculture water, river water

Depth: 30 m

The impeller;3.7KW, centrifugal, 5.5kW, 7.5KW axial, 11KW oblique

Seal: Double group mechanical seal

Bearings: deep groove ball bearings

Pump Housing: SS304

Inner upper cover: BC6 tin bronze

Cover: HT200

Impeller: ALBC3 aluminum bronze

Motor type: dry water type, 4P, F, 50HZ, motor housing: SS304, cable: H07RN-F
