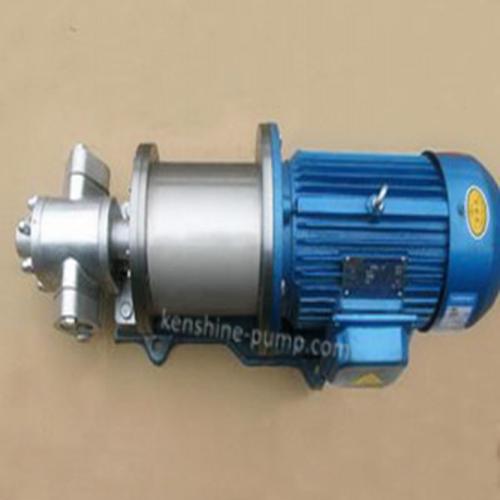

KCBC Magnetic coupling gear oil pump KCBC-300 Description

KCBC magnetic gear pump is suitable to convey various lubricant oil with viscosity (5 to 1500CST) and oil temperature is below 260 degree Celsius.

Stainless steel gear pump can convey the beverage and low corrosive liquids( non lubricating oil ). Bronze gear pump can transport flammable, explosive and other similar liquids with low ignition point such as gasoline, benzene etc.

The pump can be driven by explosion proof motor or non explosion-proof motor. KCBC magnetic gear pump has no leakage and is used in transmission and booster of oil transportation system in various industrial fields.

KCBC magnetic gear pump is mainly composed of gear, shaft, pump body, safety valve, shaft sleeve etc. Gear has higher hardness and strength. Gear and shaft and shaft sleeve are installed together to work. The parts into pumps can be lubricated by the pumped liquids.

Model    Flow    Speed    Pressure    NPSH    Efficiency    Motor

r/min    Mpa    η

r    %

m3/h    L/min    m    Power(KW)    Model

KCB-18.3    1.1    18.3    1400    1.45    5    44    1.5    Y90L-4

2CY-1.1/1.45

KCB-33.3    2    33.3    1420    1.45    5    44    2.2    Y100L1-4

2CY-2/1.45

KCB-55    3.3    55    1400    0.33    7    41    1.5    Y90L-4

2CY-3.3/0.33

KCB-83.3    5    83.3    1420    0.33    7    43    2.2    Y100L1-4

2CY-5/0.33

KCB-135    8    135    940    0.33    5    46    2.2    Y112M-6

2CY-8/0.33

KCB-200    12    200    1440    0.33    5    46    4    Y112M-4

2CY-12/0.33

KCB-300    18    300    960    0.36    5    42    5.5    Y132M2-6

2CY-18/0.36

KCB-483.3    29    483.3    1440    0.36    5.5    42    11    Y160M-4

2CY-29/0.36

KCB-633    38    633    970    0.28    6    43    11    Y160L-6

2CY-38/0.28

KCB-960    58    960    1470    0.28    6.5    43    18.5    Y180M-4

2CY-58/0.28

KCB-1200    72    1200    740    0.6    7    43    37    Y280S-8

KCB-1600    95    1600    980    45    Y280S-6

KCB-1800    112    1800    740    0.6    7.5    43    55    Y315S-8

KCB-2500    150    2500    985    75    Y315S-6

KCB-2850    170    2850    740    0.6    8    44    90    Y315L1-8

KCB-3800    230    3800    989    110    Y315L1-6

KCB-4100    245    4100    743    0.6    8    44    132    Y355M1-8

KCB-5400    325    5400    989    160    Y355M1-6

KCB-5600    330    5600    744    0.6    8    44    160    Y355M2-8

KCB-7600    460    7600    989    200    Y355M3-6

KCB-7000    420    7000    744    0.6    8    44    185    Y355L1-8

KCB-9600    570    9600    989    250    Y355L2-6
