• Product Name: JXM-A mechanical diaphragm metering pump
• Model Number: JXM-A80/1.0
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

JXM-A mechanical diaphragm metering pump JXM-A80/1.0 Description

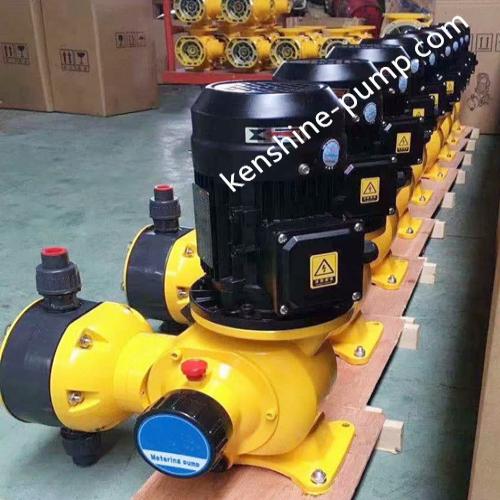

JXM-A mechanical diaphragm metering pump

The metering pump is suitable for conveying the liquid without solid particles with a temperature of -30 ~ 100℃ and a viscosity of 0.3 ~ 800mm2/s.  Metering pump has the advantage of no leakage, so it is suitable for conveying flammable, explosive, volatile, strong corrosion, radioactive, toxic, suspension and expensive liquid. In particular, the diaphragm metering pump with alarm device can send the alarm within 2 seconds after diaphragm rupture, ensuring the safety of operators and processes.

The diaphragm metering pump is widely used in petroleum, chemical, electric power, atomic energy, medicine, food, environmental protection, textile and mining industries

FEATURES:

Double eccentric adjustment The maximum rated flow with =500L/h Maximum discharge pressure: P2=1.2Mpa A variety of material pump head optional (PVC, PCDF, PTFE, 304, 316L) Mechanically driven PTFE diaphragm Manual / automatic stroke adjustment / digital frequency conversion control are optional The stroke can be adjusted under static and dynamic conditions Maximum medium temperature: -100C - 1000C Pump adjustment range 10%-100% flow fine <+1% Diaphragm rupture alarm monitoring mechanism
