• Product Name: JX Plunger metering pump dosing pump chemical pump
• Model Number: JX10/4.0
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

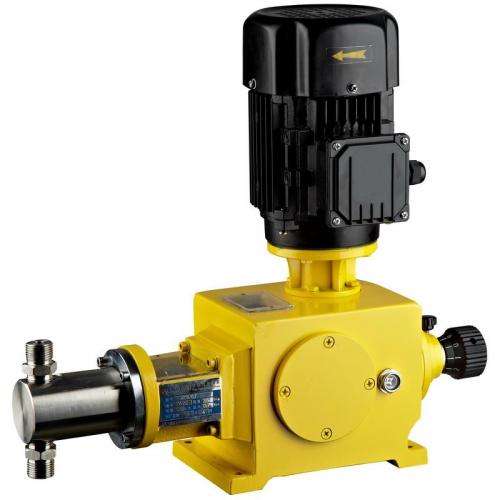

JX Plunger metering pump dosing pump chemical pump JX10/4.0 Description

JX Plunger metering pump characteristic

Maximum flow rate:0-200L/H

Maximum discharge pressure:0-50MPA

Medium temperature is not higher than 250 degree Celsius

Pump material:SS304,SS316L,20# alloy, Hastelloy, Ceramics etc

Flow control mode: manual/automatic stroke adjustment/ digital frequency conversion control

Pump can be adjusted in the running or stopping

Single cylinder pump, double cylinder pump and three cylinder pump can be made. Flow can be independently adjusted.

Flow stability viscosity: ±1%

Inlet and outlet connection: pipe connection and flanges connection.

JX plunger metering pump is suitable for liquids measurement and dosing with small capacity in purification, sewage treatment, laboratory etc
