• Product Name: JMZ stainless steel self priming alcohol transfer pump
• Model Number: 80JMZ-22
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

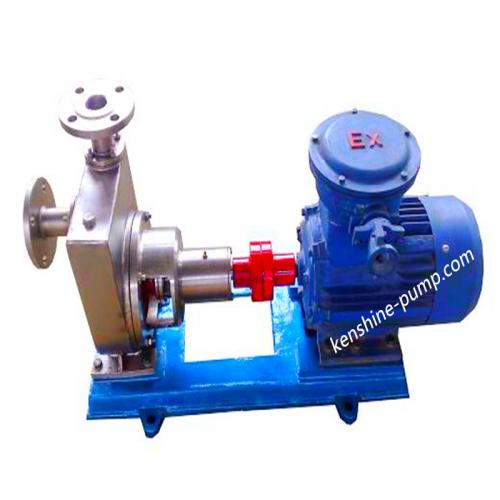

JMZ stainless steel self priming alcohol transfer pump 80JMZ-22 Description

JMZ stainless steel self-priming alcohol centrifugal pump, FMZ self-priming chemical pump are equipped with is new mechanical seal assembly (no leakage) and driven by explosion-proof motor.
JMZ self-priming alcohol pump is suitable for transportation (-35 ~ +120℃) of all kinds of alcohol, beverages, dairy products, pharmaceutical, gasoline, solvent oil, syrup and other industries. FMZ self priming chemical pump is suitable for conveying (-35 ~ +120℃) thick slurry, acid, alkali, salt and other chemical liquids.
This pump has the characteristics of compact structure, easy operation, good self-priming performance, small size, light weight, stable performance, no bottom valve, no need for self-priming when starting.
Performance range of this pump: flow is 3M3/h ~ 190M3/h, head is 22m ~ 60m, caliber is: 25mm ~ 150mm.
JMZ, FMZ stainless steel chemical pump structure
1.The main parts of the pump are: pump body, impeller, pump shaft, mechanical seal, suspension frame etc.
2.The rotation of the pump is for counterclockwise when the pump is viewed from the inlet.
3.Pump installation: fixed and mobile. Fixed installation type: Pump inlet and outlet generally use flange type; Portable installation type :pump inlet and outlet is generally for screw type.(note: the fixed installation type:  flange is generally for 0.6Mpa pressure)
