• Product Name: ISW centrifugal horizontal monoblock pump
• Model Number: ISW50-125
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

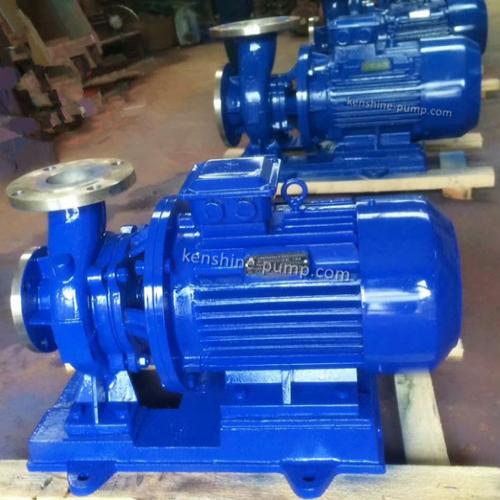

ISW centrifugal horizontal monoblock pump ISW50-125 Description

ISW single stage single suction horizontal centrifugal pump is developed and made on the base of IS centrifugal pump.  ISW Single stage horizontal centrifugal pump is with the structure of closed coupling. ISW single stage horizontal centrifugal pump can be made of cast iron, stainless steel or bronze impeller etc material and equipped with standard motor or explosion proof motor according to the pumped liquids. The pump is widely used to transfer the water, oil, chemical liquids etc.

1, ISW single-stage single suction horizontal centrifugal pump can transport water and other similar liquids to water in physical and chemical properties. ISW single stage horizontal centrifugal pump is applicable for industrial and urban drainage, pressurized water supply in high-rise building, garden sprinkler irrigation, fire pressurization, long-distance transmission, hvac refrigeration cycle, bathroom and other warm water circulation pressurization equipment form a complete set. The pumped liquid temperature is no higher than 80DegC.

IRW single stage single suction horizontal heat water centrifugal pump is widely used in: metallurgy, chemical industry, textile, papermaking, hotels and other boilers etc for hot water pressurized circulation transmission and urban heating system. The liquid temperature is less than 120DegC.

3, IHW single-stage single-suction horizontal chemical pump is used for conveying corrosive liquids which are similar to water in the viscosity and without solid particles. IHW Single stage horizontal chemical pump is suitable for petroleum, chemical industry, metallurgy, electric power, papermaking, food, pharmaceuticals and synthetic fiber etc. The pumped liquid temperature is 20 to 120 DegC.

4, ISWB horizontal pipeline oil pump is used for the transmission of gasoline, kerosene, diesel and other oil products or flammable, explosive liquid. The temperature of the medium is 0 to 80DegC.

5, ISWD horizontal low speed centrifugal pump is applicable for the requirements of low environmental noise occasions. The pumped liquid temperature is no higher than 120DegC.  The low rotary speed: 1450rpm/980rpm etc. The pump can be made of different material such as cast iron, stainless steel etc and equipped with normal standard motor or explosion proof motor according to the pumped liquids.
