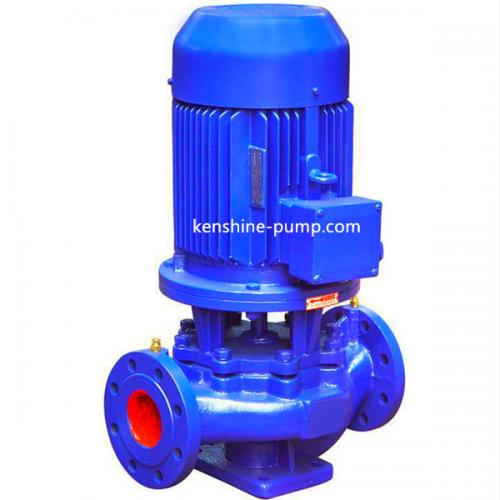

• Product Name: ISG inline pipeline booster circulation transfer vertical pump
• Model Number: ISG100-160(I)A
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

ISG inline pipeline booster circulation transfer vertical pump ISG100-160(I)A Description

ISG Vertical pipeline centrifugal transfer booster circulating pump
Design and manufacture standard
ISG vertical single-stage pipeline centrifugal pump is the domestic excellent hydraulic model. It is manufactured at the base of IS single-stage single-suction centrifugal pump and general vertical pump and meet the standard ISO2858 and JB/T53058-93.
According to the different pumped liquids and temperature etc, ISG vertical pipeline centrifugal pump is manufactured for clean water pump, hot water pumps, corrosion resistant chemical pump, oil pump etc. The pump has the advantages of high efficiency, low noise, reliable performance and so on.

Pumped liquids (clean water, hot water, corrosive chemical liquids, oil etc.)
ISG vertical pipeline centrifugal pump can transport water and other similar liquids in physical and chemical properties similar to water. It is applicable to industrial and urban water supply and drainage, pressurized water supply in high-rise building, garden sprinkler irrigation, fire pressurization, long-distance transmission, HVAC refrigeration cycle, cold and hot water circulation pressurization in the bathroom, etc.  and form a complete set of equipment, using temperature T <80 ℃.

IRG type vertical hot water pump is suitable for high temperature hot water pressurization circulation transportation of boilers, such as metallurgy, chemical industry, textile industry, wood processing, papermaking, hotel, bathroom and hotel, as well as urban housing heating circulation pump. The operating temperature is below 120℃.

IHG type vertical stainless steel pipe centrifugal pump is used for conveying corrosive liquid without solid particles with corrosive viscosity similar to water. It is suitable for petroleum, chemical industry, metallurgy, electric power, papermaking, food and pharmaceutical, synthetic fiber and other departments.

YG type pipeline oil pump is used for the transportation of gasoline, kerosene, diesel oil and other petroleum products, the medium temperature is -20℃ ~ + 120℃.

IHGB type vertical stainless-steel explosion-proof chemical centrifugal pump is suitable for transporting inflammable chemical liquid.
ISGD, IRGD, GRGD, IHGH, YGD, IHGBD vertical low-speed centrifugal pump is suitable for occasions with low environmental noise requirement and air conditioning circulation etc.

Features
1. ISG pump is a vertical structure, with the same inlet and outlet diameter and on the same center line. It can be installed in the pipeline like a valve, with compact and beautiful appearance, small floor area and low construction investment.
2. The impeller is directly mounted on the extended shaft of the motor, with short axial size, compact structure, reasonable configuration of the pump and motor bearing, which can effectively balance the radial and axial loads generated by the pump operation, thus ensuring low noise of balanced vibration of the pump operation.
3, the shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium alloy seal ring, medium high temperature resistant mechanical seal and hard alloy material, wear-resisting seal, can effectively increase the service life of the mechanical seal.
4, easy installation and maintenance, no need to dismantle the pipeline system, as long as the pump coupling nut can be taken out of all rotor parts.
5, It can be used according to the requirements of flow and head needs of the pump series, parallel operation mode.
6, according to the pipe layout requirements of the pump vertical and horizontal installation.


Model meaning
ISG100-160(I)ABC
ISG: Vertical pipeline centrifugal pump
100: pump inlet and outlet(100mm)
I: discharge flow is larger
A: Impeller is cut for the first
B: Impeller is cut for the second
C: Impeller is cut for the fourth
