• Product Name: IS horizontal clean water centrifugal pump
• Model Number: IS100-65-200
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

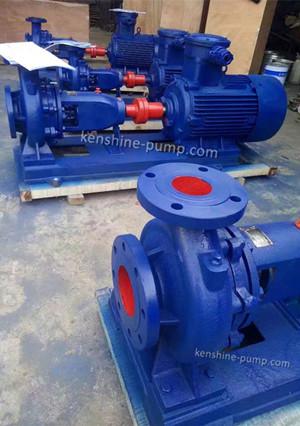

IS horizontal clean water centrifugal pump IS100-65-200 Description

IS single stage single suction (horizontal end suction single stage centrifugal pump )can be made of cast iron or stainless steel or bronze material and used to transfer the water or other similar liquids.

IS horizontal single stage end suction centrifugal pump is with back pull structure for easy operation.  IS centrifugal pump can be made of cast iron or stainless steel or bronze material according to different liquids and driven by normal motor or explosion proof motor. The pump is used to transfer the water or other similar liquids. Seal type: gland packing seal or mechanical seals. The pumped liquids temperature is no higher than 80 degree C.

ISR horizontal single stage centrifugal pump adopt the anti-high temperature mechanical seal and is used to transfer the hot water with the temperature no higher than 115Degree C.

IS Series single stage single suction end suction horizontal centrifugal pump is the energy-saving pump to substitute BA series and B series single stage clear water centrifugal pump.

Advantages: reasonable hydraulic structure and convenient maintenance and good suction height and high efficiency etc. The pump is suitable for water supply and discharge in industry and city and gardening in farm. It is used to transport clear water and other liquids which is similar to clear water in physical and chemical characteristic. Liquids temperature is not higher than 80℃.

Performance ranges:

Speed: 2800rpm and 1450 rpm

Inlet: 50-200mm

Capacity: 6.3-400m3/h

Head: 5-125m
