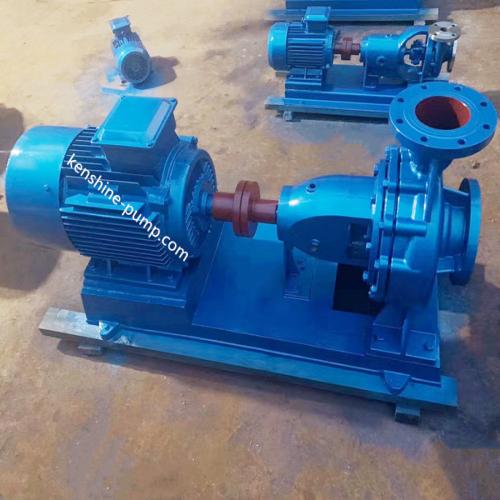

IR horizontal single stage hot water pump IR80-65-160 Description

IR Horizontal single stage end suction hot water pump

IR single-stage single suction hot water pump is designed for conveying liquids with viscosity similar to water without solid particles. The temperature of the conveying medium is 20 to 105 degrees Celsius.  The maximum working pressure of the pump is 1.6mpa, and the inlet pressure is not higher than 0.6mpa

rotary speed :2900rpm/ 1450rpm, flow rate of 6.3-400m3 /h, head of 5-80m,

all series adopt mechanical seal and high-quality soft PTFE gland packing seal.  Its structural form is horizontal suspension, radial part, rear door, center support. IR pumps are suitable for conveying high temperature clean medium. IR pumps are connected with motor by shaft coupling. Bearings are single row centripetal ball bearings lubricated with lubricating oil. The flow-passage parts are made of gray cast iron.

 Application:

Mainly used in metallurgy, chemical industry, power station, heating, light textile, waste heat utilization, heat exchange device, etc.



modelFlow rateheadspeedmotor powerefficiency （%）NPSHr (m)（m3/h）（m）（r/min）（kw）　IR50-32-12512.52029002.25126.3514500.55452　IR50-32-16012.532290034626.3814500.55402　IR50-32-20012.55029005.53926.312.514501.1332　IR50-32-25012.5802900113326.32014502.2272　IR65-50-12525202900362212.5514500.55552　IR65-50-160253229005.557212.5814500.75512　IR65-40-200255029001152212.512.514501.5462　IR65-40-250258029001546212.52014503392　IR65-40-3152512529003039212.53214505.5332　IR80-65-125502029005.569325514500.75642.5　IR80-65-1605032290011672.325814501.5622.3　IR80-50-2005050290015632.52512.514502.2572　IR80-50-2505080290030532.5252014504502　IR80-50-31550125290045502.5253214507.5482.5　IR100-80-12510020290011734.250514501.5693.4　IR100-80-16010032290015734.350814502.2693.4　IR100-65-20010050290022723.95012.514503682.5　IR100-65-25010080290037683.6502014505.5632.5　IR100-65-315100125290075623.25032145011582　IR125-100-2002005029004577510012.514507.5732.9　IR125-100-25020080290075754.510020145011722.3　IR125-100-3152001252900110724.510032145022652.5　IR125-100-40010050145030552.5　IR150-125-25020020145018.5772.8　IR150-125-31520032145030752.8　IR150-125-40020050145055702.5　IR200-150-25040020145037792.8　IR200-150-31540032145055793.5　IR200-150-40040050145090783.5

flow rate	6-400m3/h
head	5-80m
pump material	cast iron HT200
centrifugal pump	hot water pump
industrial pump	circulation pump
transfer pump	feeding water pump
horizontal pump	single stage end suction pump
