• Product Name: IMC magnetic drive chemical process pump
• Model Number: IMC65-50-125
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

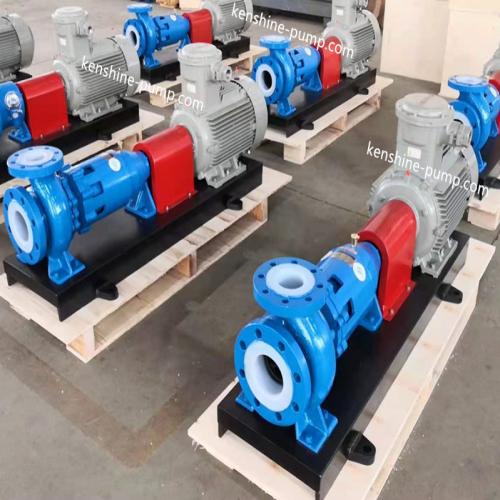

IMC magnetic drive chemical process pump IMC65-50-125 Description

IMC type magnetic drive chemical process pump using magnetic theory, the use of intensive poly-magnetic push-pull magnetic circuit structure, to achieve non-contact torque transmission, cancel the traditional mechanical seal pump seal to replace the static seal and dynamic seal to hermetically sealed, no leakage of the transmission medium.
IMC-P series of fluorine plastic magnetic pump type and the basic parameters of the light HG/T2730-95 "chemical process magnetic drive centrifugal pump," the chemical industry standards.
IMC-P Series fluoride plastic magnetic pumps for chemical, pharmaceutical, fertilizer, smelting, electroplating, food, film and printing photos, water treatment, military and other industries, the transportation of flammable, explosive, volatile, toxic, rare and precious liquid and ideal for a variety of corrosive liquids equipment.
IMC-P high-temperature fluorine plastic magnetic pump maximum delivery pressure of 1.6MPa, the temperature not exceeding 200 ℃, viscosity of less than 30 * 10-6M2 / S does not contain hard particles and fibers of the liquid.
When the transmission medium system pressure is greater than 1.6MPa, it can make special design and manufacturing.
