• Product Name: IH Stainless steel chemical industry centrifugal pump
• Model Number: IH50-32-200
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

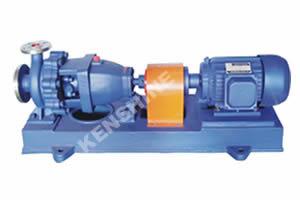

IH Stainless steel chemical industry centrifugal pump IH50-32-200 Description

IH Series chemical industry pump is the single stage single suction overhung centrifugal pump. The rated performance and size etc are as the ISO2858-1975(E). The pump is the new energy-saving pump to substitute F series corrosion resistance pump in chemical industry, petroleum, metallurgy, electricity station, food, pharmacy, etc. The liquids pumped is the corrosive liquids at the temperature of -20℃～115℃ or liquids which are similar to water in physical and chemical characteristic. IHR chemical pump can transport the liquids at the temperature of 20℃～180℃ by the mechanical seal with anti-high temperature.

Capacity: 6.3-400m3/h
Head: 5-125m
Max working pressure: 1.6MPa
The parts which contact with liquids can be used different material as the corrosion of liquids.
