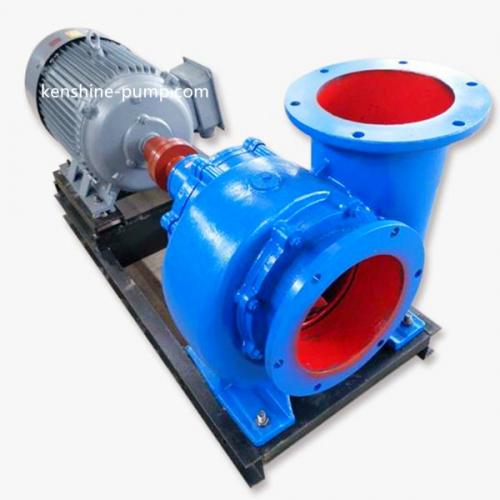

HW horizontal mixed flow volute pump 100HW-7 Description

Mixed flow volute pump

HW mixed flow pump is between centrifugal pump and axial flow pump. The pump has Small size, light weight, simple structure and it is easy to use and maintain. The conveyed medium is clean water or similar liquid. HW mixed flow pump is suitable for farmland drainage and industrial water supply and drainage.

HW type mixed flow pump is horizontal single suction volute mixed flow pump. The pump is suitable for conveying clean water or other liquids with physical and chemical properties similar to water. It is used in farmland drainage and irrigation, industrial and urban water supply and drainage.

HW volute mixed flow pump is mainly composed of pump cover, impeller, pump body, pump shaft, shaft sleeve and bearing body (diameter ≤350MM) or bearing frame (diameter ≥400mm) and other main parts.

performance

capacity: 180-3665m3/h

Head: 3.0-20.7 m

Supporting power: 3-250kW

Features:

1. simple structure, convenient usage, high efficiency, small size, light weight

2. Transmission mode: direct transmission and variable transmission. The commonly used driven engines are electric motors and diesel engines. Motor with shaft coupling and diesel engine with pulley.

3. Pump rotation: Viewed from pump inlet the impeller is generally for counterclockwise.

Model Description:

HW-300 7 s

300: pump inlet and outlet diameter (300mm)

HW: Volute mixed flow pump

7: Head (7M)

S: structural form (front and back door open structure)

Adopt standard HW-S pump, with GB/T13008 JB/T6667 standard design and manufacture.
