• Product Name: horizontal plastic electric diaphragm pump
• Model Number: DBY-25PPF46
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

horizontal plastic electric diaphragm pump DBY-25PPF46 Description

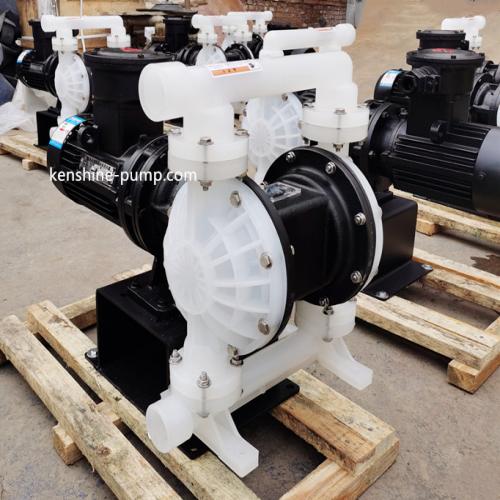

Plastic electric diaphragm pump

Widely used for suction and discharge all kinds of strong acid, strong alkali, strong corrosive liquid, suction paint, gum, pigment etc.

The motor (A) drives the diaphragm (D) on the left and right ends of the plunger through the gear reducer box (B).In the left and right pump cavities, equipped with the upper and lower four one-way ball valve (C) , diaphragm movement results in changes in the volume of the working chamber, forcing the four one-way ball valve alternately open and closed, so as to continuously suck and discharge liquids.

Pump material: Cast iron, stainless steel, rubber lining, aluminum alloy, motor can be divided into ordinary motor, explosion-proof motor, deceleration motor and electromagnetic speed regulating motor.

Diaphragm: NBR (Nitrile rubber), neoprene rubber, fluorine rubber, F46/PTFE etc.

Application:

1. Electric diaphragm pump sucks all kinds of sewage.

2, paint absorption, gum, pigments.

3. Adhesive and glue can be absorbed by pump.

4, all kinds of tile, porcelain, brick and ceramic glaze slurry.

5. After drilling the oil well, pump the sediment and grouting.

6. Peanut butter, pickles, mashed potatoes, red sausage, jam, apple juice, chocolate, etc.

7, diaphragm pump suction of various emulsions and fillers.

8, with the diaphragm pump for tanker, barge clearance warehouse to absorb the sewage.

9. Slurry of hops and baking powder, syrup and molasses.

10, electric diaphragm pump is used in mine, road, tunnel, mineral processing for slag water.

11, diaphragm pump sucks cement grouting and mortar, all kinds of rubber slurry.

12, all kinds of abrasives, corrosive agents, oil and mud, cleaning oil scale and general containers.

13. All kinds of highly toxic, flammable and volatile liquids.

14, all kinds of strong acid, strong alkali, strong corrosive liquid.
