• Product Name: Horizontal end suction centrifugal water pump
• Model Number: IS80-65-160
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

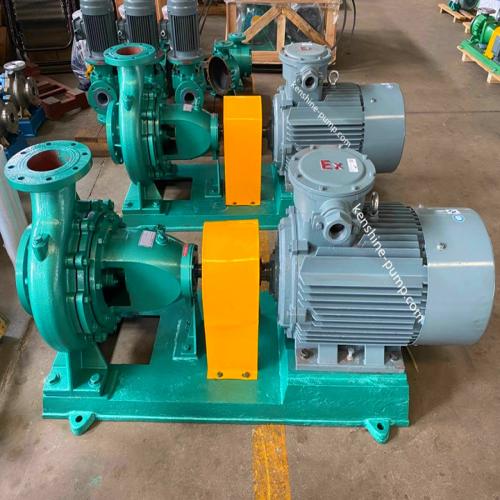

Horizontal end suction centrifugal water pump IS80-65-160 Description

 IS horizontal single stage single suction clean water centrifugal pump is used for industry, agriculture and urban, drainage, fire water supply, etc.

IS end suction pump is for suction and delivery of clean water and other similar liquid of physical and chemical properties. The liquid is without solid particles. So, it is widely used in industry, agriculture, urban drainage, fire water supply and so on.

IS centrifugal pump is designed according to the performance and dimensions specified in the international standard IS02858, and its technical standards are close to the international standard, reaching the international advanced level. It is one of the energy-saving pump products popularized in China.

This pump has simple structure, reliable performance, small volume, light weight, good cavitation resistance, low power consumption, easy to use and maintain.

IS horizontal centrifugal pumps have wide versatility. The whole series has 140 specifications, but only four shafts. The bearing, shaft seal is the same for the same specification shaft.

There are only four kinds of suspension frame for the whole series of pumps.

IS type clean water centrifugal pump is rear open type. It is not necessary to remove the suction and discharge pipelines when the pump cover and impeller are disassembled. Two ball bearings are mounted in the suspension frame and lubricated with machine oil or grease. The pump is driven directly by an electric motor through an elastic coupling. The vortex chamber, foot, inlet flange and outlet flange are casted as a whole.
