• Product Name: HEM Multi-Turn Electric Actuator-Basic Type
• Model Number: HEq Electric Actuator-Basic Type
• Brand Name: heli
• Place of Origin: china, China
• Minimum Order Quantity: 5
• Supply Capacity: 1000/month
• Payment: TT
• MemberShip: Gold Member
• Inquiry Now
• Bookmark & Share:

HEM Multi-Turn Electric Actuator-Basic Type HEq Electric Actuator-Basic Type Description

The HEM series is a new generation of multi-turn electric actuators developed and manufactured by the technical team of Heli based on user needs and years of development experience.
The HEM series can produce a variety of models according to user needs, such as basic, intelligent, bus, intelligent split and other forms, which are safe, stable and reliable to meet different application scenarios in various fields.

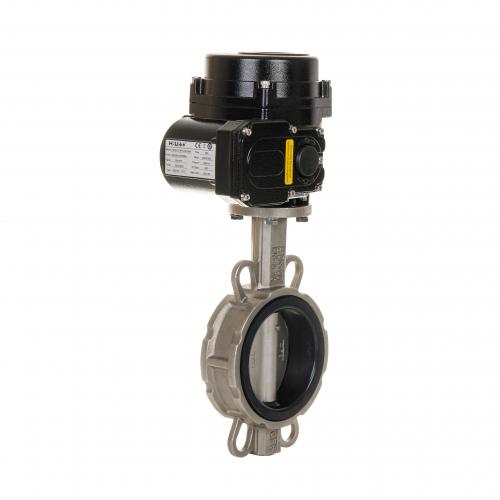

HEM series multi-turn electric actuators can be used not only with straight-stroke valves such as regulating valves, venting valves, and stop valves, but also with corner-stroke valves such as butterfly valves, ball valves, and plug valves after installing a part-turn worm gear box.
HEM series direct output torque range is 60N.m-800N.m, output speed range is 18rpm-144rpm, according to different speeds and different speed ratios, with electric special worm gear box can be converted to greater and more torque requirements.
