• Product Name: GW Pipeline sewage pump
• Model Number: 100GW100-15-7.5
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

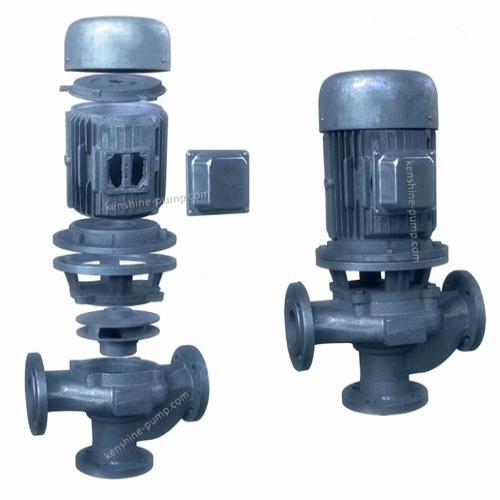

GW Pipeline sewage pump 100GW100-15-7.5 Description

GW not clogging pipeline sewage pumps adopts unique impeller structure and new mechanical seal, which can effectively transport solid matter and long fiber. Compared with traditional impeller, the impeller of this pump adopts the form of single flow channel or double flow channel, which is similar to a curved pipe with the same size of section, and has very good pass flow ability. It is equipped with a reasonable cochlear chamber, which makes the pump have high efficiency.

Characteristics of GW type non - clogging sewage pump

1, pump and motor direct coaxial, electromechanical integration products, compact structure, stable performance.

2, large flow channel anti-blocking hydraulic components design, greatly improve the sewage through capacity, can effectively pass through the pump diameter of 5 times of fiber substances and pump diameter of about 50% of the solid particles.

3. Reasonable design, reasonable supporting motor, high efficiency, low noise, remarkable energy saving effect.

4. The mechanical seal adopts hard wear-resistant tungsten carbide, which is durable and wear-resistant, and can make the pump run safely and continuously for more than 8000 hours.

5. The pump is of vertical structure, the import and export center line is on the same horizontal line, and the import and export flange specifications are the same, the installation and disassembly is very convenient.

6. Small floor area, no need to build machine room, can save a lot of infrastructure costs;The whole machine can be put in the outdoor work by adding a protective cover at the wind blade end of the motor.
