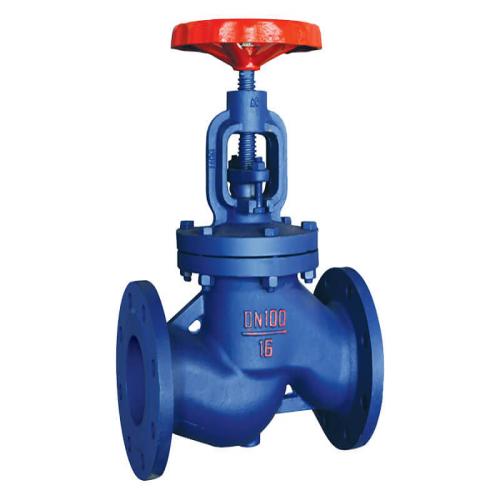

• Product Name: GG25 Globe Valve
• Model Number: J41T-16
• Brand Name: Wesdom
• Place of Origin: Henan, China
• Minimum Order Quantity: 1
• Supply Capacity: 300/month
• Payment: T/T, L/C , Western Union
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

GG25 Globe Valve J41T-16 Description

Adoptive standards:

MAIN PARTS AND MATERIALS1Parls nameMaterial2Valve body,DonnetGG253DiscBronze,Stainless steel4StemStainless steel,Brass5Hand wheelGG25

TypePN (MPa)Test ;pressureSuitable temperature℃Suitable mediumStrength ;(water) MPaEnclose (water) MPaJ41T-16 ;1.62.41.8-10~200℃Water ,vapourJ41W-16 ;-10~100℃Oil ;J41H-16-10~200℃Water ,vapour,oilJ41F-16 ;-10~150℃J41X-160~80℃Water

Features:

1.This valve should be stored in dry warehouse and should not be piled up in open air.
2.It should be regularly maintenance during a long time storage.
3.This valve can fitted at any piping and any position. And the flow of media should be same with the arrow.
4.Hand wheel can not be used as lifting.
5.The product should not bear larger external force after installation.
6.Pressure test should be done before installation and can be installed only if it meet the requirements.
7.The inside of the piping and valve should be clean before installation.
8.Hand wheel turn counter clockwise is closed,otherwise it’s open.Any assistant lever should be added in during the process of open and close.

Application:

1.Petroleum;
2.Chemical industry;
3.Metallurgy;
4.Power;
5.Paper-making;
6.Pharmacy;
7.Food;
8.Water-treatment.
