• Product Name: GDL multistage centrifugal vertical water pump
• Model Number: 25GDL2-12*3
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

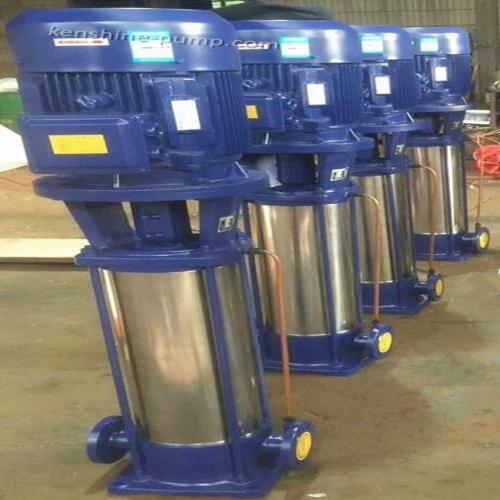

GDL multistage centrifugal vertical water pump 25GDL2-12*3 Description

GDL Vertical multistage pipeline centrifugal water pump

Characteristics:

1. Advanced hydraulic model: high efficiency, wide range of performance.
2. Easy installation and maintenance: Pipeline installation, suction inlet and discharge outlet can be installed in the pipeline as any location and any direction, installation and maintenance is very convenient.
3. Beautiful appearance: the use of high-quality stainless steel jacket, beautiful appearance.
4. Less operation, maintenance costs: the use of high-quality mechanical seal, wear-resistant, no leakage, long life, low failure rate, with less operating costs.
5. Unique components, reduce noise: unique hydraulic components design, the largest reduction in flow noise.
6. Vertical structure, small size

GDL Vertical multistage pipeline centrifugal water pump

Working conditions

1. The pump can transport water or physical and chemical properties similar to the liquid water;
2. Temperature range: -15 ℃ ~ +120 ℃;
3. Working pressure: the maximum pressure of 2.5MPa, that is, the system pressure = inlet pressure + valve operating pressure <2.5MPa;
4. The ambient temperature should be less than 40 ℃, relative humidity does not exceed 95%;
5. When conveying corrosive media and hot liquid, please make the order when ordering so that special materials can meet the requirements.

GDL Vertical multistage pipeline centrifugal water pump

Application:

GDL Vertical multistage pipeline centrifugal water pump is Widely used in high-pressure operation system in the hot and cold water circulation and pressurization, high-rise building multi-pump parallel water supply, fire, boiler feed water and cooling water system and a variety of washing fluid delivery.

GDL Vertical multistage pipeline centrifugal water  pump

Performance range:

Flow: 2-160m3 / h
Head: 24-200m
Power: 1.1-90kw
Speed: 2900r / min
Caliber: φ25-φ150
Temperature range: -15- +120 ℃
Working pressure: ≤2.5Mpa.
