• Product Name: GC Boiler feed water centrifugal pump
• Model Number: 2GC-5*4
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

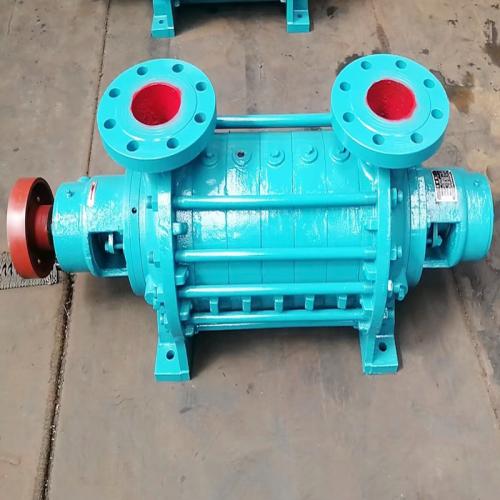

GC Boiler feed water centrifugal pump 2GC-5*4 Description

GC boiler feed water centrifugal pump/multistage horizontal pump

Horizontal single suction multistage segmented centrifugal pump is mainly used for boiler water supply, so also known as boiler water pump.  This series of boiler feed pumps are suitable for conveying clean water with temperature lower than 110°C or other non-corrosive liquids with physical and chemical properties similar to water, which are widely used for boiler feed water of industrial and mining enterprises and public institutions and urban life water supply.

The inlet and outlet sections are vertical upward，The head can be increased or decreased according to the user’s requirements

GC boiler feed pump is particularly suited to the boiler feed water, also can be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, irrigation, fire pressurization, rinse with water, food, brewing, medicine, chemical industry, aquaculture, environmental protection, such as the chemical technological process and form a complete set of machine tool industry, as the power equipment of water supply and drainage.

The main parts of GC boiler feed pump are shaft, shaft sleeve, inlet section, impeller, guide wing, sealing ring, middle section, outlet section, balance ring, balance plate, tail cover.  The inlet section, the middle section, the outlet section and the tail cover are made of cast iron, forming the pump working chamber together.
