• Product Name: GBW horizontal chemical centrifugal pump for Concentrated Sulfuric acid
• Model Number: GBW65-100
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

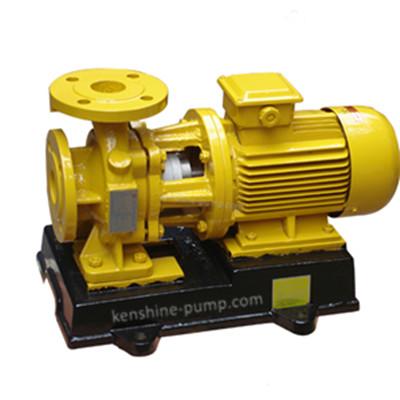

GBW horizontal chemical centrifugal pump for Concentrated Sulfuric acid GBW65-100 Description

GBW Concentrated Sulfuric acid Pump

Pump Introduction:

GBW of concentrated sulfuric acid pump is the designed and made centrifugal pump according to IS Series pump performance parameters. GBW concentrated sulfuric acid  pump is made of cast iron and carbon steel two special materials and with the outstanding hydraulic model as the new chemical pump.

Shaft seal is for outer mounted mechanical seal with high quality. Dynamic and static rings are made of hard alloy or ceramic. The seal has the advantages of wear resistance and

no leakage and long life etc.

GBW special carbon steel centrifugal pump is used to transfer concentrated sulfuric acid with concentration from 80% to 98% and the temperature is from 25 degree Celsius to 60 degree Celsius.

GBW Special cast iron centrifugal pump is used to transfer concentrated sulfuric acid with concentration from 80% to 98% and the temperature is from 25 degree Celsius to 50 degree Celsius.

Model meaning:

GBW 25-125

GB – concentrated sulfuric acid pump

W – Horizontal

25 – Diameter of pump inlet and outlet

125 – diameter of impeller

Performance range

Flow:4~550m3/h;

Head:12.5~50m;

Rotary speed:1450,2900r/min;

power:1.1~55KW
