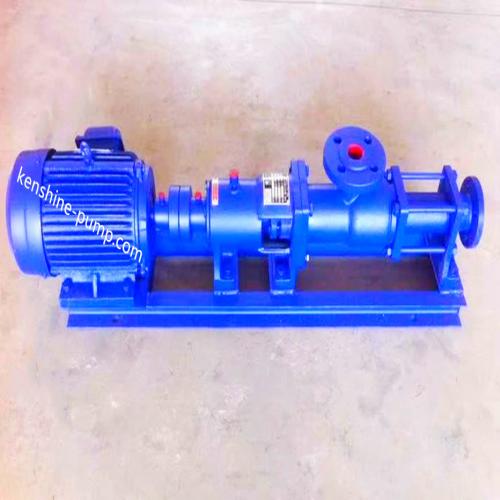

• Product Name: G singles screw sewage slurry drainage pump
• Model Number: G135-1
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

G singles screw sewage slurry drainage pump G135-1 Description

G single screw adopts the stator of a variety of elastic material and G single screw pump is used to transfer the high viscosity 80% fluid and the fluids with the hard suspended particles or fiber etc. impurity.  It is the new sewage or impurity pumps different as the general pump. The discharging flow rate of G single screw pump is proportional to the  rotary speed. G single screw pump has the low rotary speed and is widely used in food, paper making, printing and dyeing, chemical, pharmaceutical industries use of fertilizers.  Pump transmission can use coupling direct transmission, or use motor, triangular belt, gearbox and other devices to change speed.

Few pump parts, compact structure, small volume, easy to assemble and disassemble.

The rotor and stator are for wear parts. The new type of pump is according to the working principle of meshing volume type. The main working parts are eccentric screw (rotor) and fixed bushing (stator), using non-toxic tasteless edible rubber, the working temperature can reach 120 degrees Celsius, such as using high temperature 120-350 degrees Celsius, also can be customized. Stator and rotor consist of individual seal room. The medium is pushed to move evenly from the axial direction and the internal flow rate is low and the volume remains unchanged and the pressure is stable, there will be no eddy current and agitation. The output pressure is 0.6mp-2.4mpa, and the suction height is generally over 3 meters.
