• Product Name: FZB Self priming fluoroplastic pump
• Model Number: 65FZB-30
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

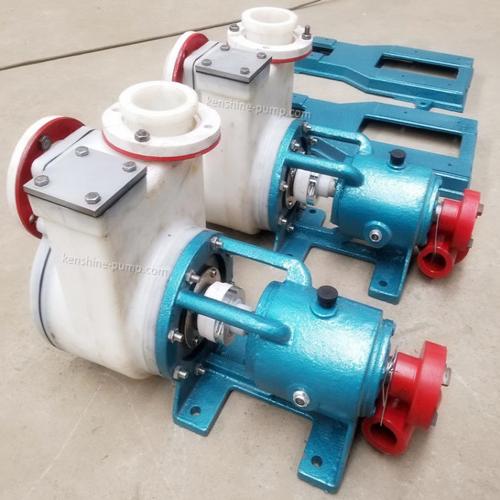

FZB Self priming fluoroplastic pump 65FZB-30 Description

FZB fluorine plastic self Priming pump

FZB chemical pump has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable work, low noise, high mechanical strength, no aging, no toxin decomposition, easy maintenance, smooth flow, high efficiency and energy saving.

It is widely used in chemical industry, acid making, alkali making, smelting, rare earth, pesticide, dye, medicine, paper making, electroplating, electrolysis, pickling, radio, foiling, scientific research institutions, national defense industry and so on.

Features of FZB fluorine plastic self priming pump:

FZB chemical pump is made of fluorine plastic which is the world's most excellent corrosion resistant materials.  FZB fluorine plastics alloy chemical pump provides superior corrosion resistance, and high mechanical strength, not aging, without toxin decomposition.

FZB fluorine plastic self priming pump can be delivery any concentration of acid, alkali, oxidant and other corrosive medium and therefore it is widely used in chemical, petroleum, pharmaceutical, pesticide, refining, dyestuff, papermaking, electroplating, food, etc.

Structure description of FZB fluorine plastic self-priming pump

FZB self-priming pump consists of pump body, impeller, cover ,seal, bracket ,pump shaft, shaft coupling, bolt, nut and base etc.

1. Pump body: one steel flange ring is embedded in the connecting part on the left and right sides. Each flange ring is made of alloy by molding plastic.

2. The right side of the cover is embedded with a stainless steel (1Cr18Ni9Ti) molded plastic alloy.

3, impeller: adopt the connecting shaft connection method, the metal shaft is made of high-quality steel finishing processing and covered with plastic synthetic alloy mold pressing, so that the impeller and the metal shaft are firmly integrated, ensuring that the shaft root and the back of the impeller bear the torque force with rotation, so that the wet-medium part is plastic alloy.

4, mechanical seal: WB2, ST type without cooling water adjustable end face seal technology, made of silicon carbide, high purity alumina ceramics, filled with tetrafluoron, graphite and other materials.

Technical parameters of FZB fluorine plastic self-priming pump:

Flow rate: 1.5 to 60m3h;

Head: 15 to 50m;

Speed: 2900rmin;

Power: 1.5 to 15KW;

Inlet diameter: 25 to 80mm;

Applicable temperature: -20℃ to 120℃.

The pump has the self priming performance and suction height is up 4meters
