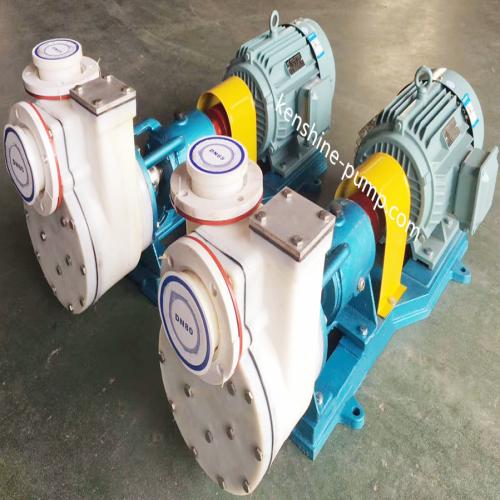

FZB fluorine plastic self-priming chemical pump

The flow parts are all made of F46 fluorine plastic alloy, with strong corrosion resistance, tight and reliable sealing performance, high mechanical strength, no aging, no toxin decomposition, convenient maintenance etc. characteristics.

The pump body is provided with a liquid suction chamber, liquid storage chamber, liquid return check chamber, gas-liquid separation chamber, reflux hole to have the performance of self-priming. The pump needs to be infused with liquid only for the first time before the pump starts. It does not need the infusion later again. The mechanical seal does not need to add cooling water for cooling, simple operation, safety and no leakage. It is the reliable pump to replace the submerged pump.

modelinlet(mm)outlet(mm)flow rate(m3/h)head(m)motor power(KW)Speed(rpm)Suction   height(m)25FZB-20L25253.6201.5
340FZB-25L40328253
340FZB-30L40328304
350FZB-25L504012253
350FZB-30L504012304
365FZB-25L655025255.5
3.565FZB-30L655025305.5
3.580FZB-25L806550257.5
480FZB-30L806550307.5
4100FZB-30L100801003015
4

flow rate	3-100m3/h
head	20-30m
pump material	F46/fluorine plastic
