• Product Name: FYB Stainless steel submerged centrifugal pump
• Model Number: 40FYB-50
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

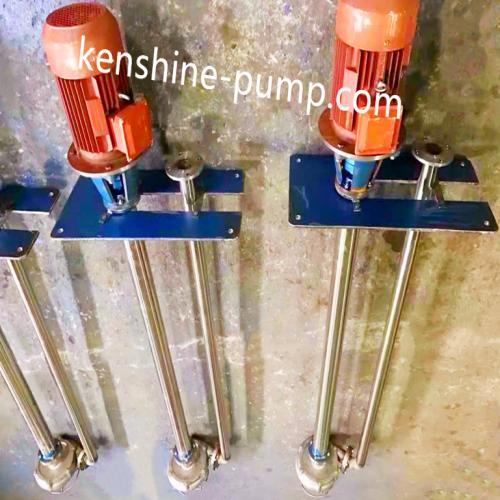

FYB Stainless steel submerged centrifugal pump 40FYB-50 Description

FYB series are vertical single-stage single-suction submerged centrifugal pumps. FYB Stainless steel submerged pump is widely used in chemical, petroleum, pharmaceutical, power, mining, dye, chemical fiber and other departments.

FYB stainless steel submerged centrifugal pump is suitable for conveying corrosive liquid. Open impeller can also be used for phosphating liquid transportation in coating industry, slurry transportation in phosphate fertilizer industry, slurry transportation in power mining industry, waste slag transportation. If the transported liquid contains a lot of solid particles or is easy to crystallize liquid, our LJYA cantilever slurry centrifugal pump can be used to convey the liquids with solid particles.

Features:

The working parts of the FYB stainless steel submerged centrifugal pump is immersed in the liquid. So the pump occupies a small area, no leakage of shaft seal, reasonable and compact structure, reliable use, long life, high efficiency, easy maintenance, easy to use etc.

Model meaning:

Such as: 25 FYB- 15

25 - pump suction diameter is 25mm

Y- Submerged centrifugal pump

B - material is 1Cr18Ni9Ti (SS304)

F - corrosion resistant series

15 - design total head is 15m
