• Product Name: FSY fiberglass immersilbe centrifugal pump
• Model Number: 40FSY-35
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

FSY fiberglass immersilbe centrifugal pump 40FSY-35 Description

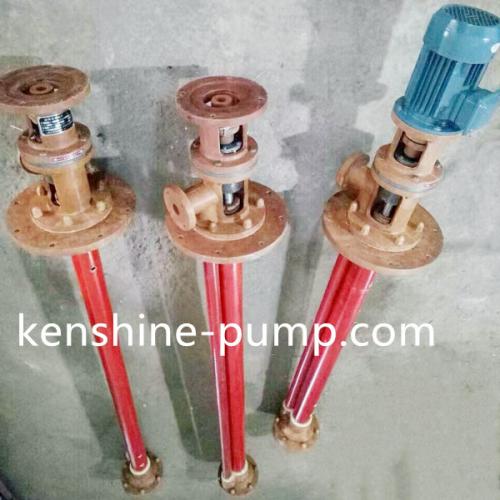

Fiberglass immersible pump

FSY fiberglass pump is a vertical fiberglass immersible centrifugal pump. The pump is extended into the storage tank. The depth of the storage tank is different and the design of submerged depth for the pump is between 800mm to 3000mm.

As long as the liquid is higher than the pump body, the liquid can be started without filling, and the leakage hole is provided under the flat cover plate, so that the liquid will not leak to the storage tank. The fiberglass reinforced plastic pump parts in contact with the medium, is with polyvinyl butyral modified phenolic fiberglass, high temperature molding phenolic fiberglass parts. The connecting tube, fluid pipe are made of rolled semi dry process phenolic fiberglass pipe, the impeller and shaft sleeve assembly all use phenolic daub and pump shaft stick into an organic whole. The flow/wet parts are all made of fiberglass material.

Fiberglass reinforced plastic has the reliable corrosion resistance, light weight, high strength, no deformation, temperature resistance, corrosion resistance and other excellent properties.In the aspect of corrosion can partially replace the precious metals containing molybdenum stainless steel, titanium and titanium alloy pump.

The pump in the direction of transmission and rotation: the pump is directly driven by the motor through the claw type elastic coupling, and the pump rotates clockwise from the motor end.
