• Product Name: Fluoroplastic centrifugal acid alkali solvent transfer pump
• Model Number: FSB50-30L
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

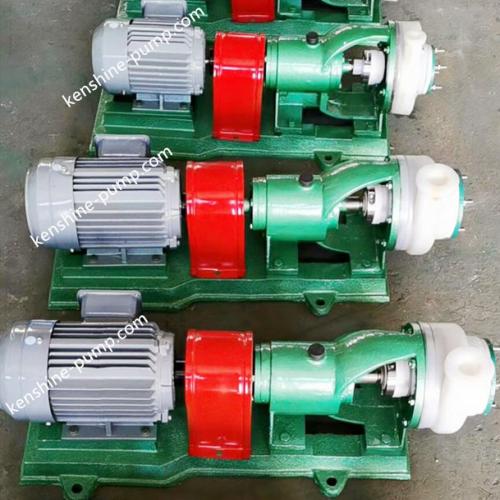

Fluoroplastic centrifugal acid alkali solvent transfer pump FSB50-30L Description

FSB Fluoroplastic alloy centrifugal chemical transfer pump

FSB-L, FSB-D fluoroplastic alloy centrifugal pump can be used to convey any concentration of all kinds of acid, alkali, salt and other corrosive medium, strong oxidizer etc. at the temperature 20℃ to 100℃. Pump shell and flow parts are all made of F46 fluorine alloy with strong corrosion resistance, high mechanical strength, not aging, no toxin, no decomposition.

Features:

Pump can work continuously and has compact structure, reliable performance, convenient operation and maintenance, high efficiency, energy saving.

Application:

FSB fluoroplastic chemical pump is suitable for transporting corrosive liquid in petroleum, chemical, pharmaceutical, pesticide, pickling, dyestuff, paint, smelting, papermaking, electroplating, food and so on.

shaft seal

The pump adopts the advanced external PTFE bellows mechanical seal, with multi-layer protection, to extend the service life of the machine seal. When conveying medium containing impurity particles, pump can be matched with no cooling water single end face hard to hard (silicon carbide to silicon carbide) mechanical seal, so the user needs to consider the solid content in the medium.

Performance range:

FSB-L fluoroplastic chemical pump is with shaft coupling and FSB-D pump is for closed coupling.

Flow:3 to 200m3/h

Head:10 to 80m

Pump material: F46/PVDF/FEP

Standard motor or Ex-proof motor

380V-415V,50HZ,3Phase, 440-460v, 60HZ, 3Phase

Model Meaning:

FSB50-30D/L

FSB means fluoroplastic chemical pump

50 means pump inlet (50mm)

30 means delivery head (30m)

D means closed coupling

L means shaft coupling type
