• Product Name: Fiberglass plastic centrifugal circulating transfer pump
• Model Number: FS100-80-35
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

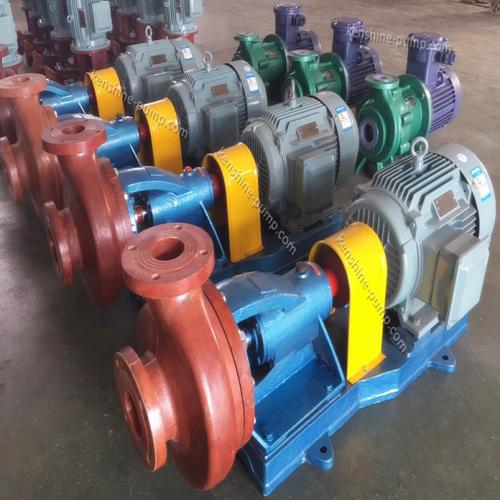

Fiberglass plastic centrifugal circulating transfer pump FS100-80-35 Description

S,FS model is horizontal single stage single suction fiberglass centrifugal pump

SL model is vertical single stage single suction pipeline fiberglass centrifugal pump

SZ model is self priming horizontal fiberglass centrifugal pump

The flow parts of pumps are punched in high temperature of polyethylene FRP material. The pumps have the advantages such as anti-corrosion and anti-high temperature and light weight and no distortion etc. Shaft seal is F4 bellows mechanical seal of WB2 type set outside to insure longer life for good seal. The pump is connected with motor by the claw shape coupling. The rotary direction of pump is clockwise when it is viewed from motor to pump end.

S,FS,SL Series fiberglass reinforced plastic centrifugal pump is used to transport the various no oxidation acids which are without solid grains and not crystal at the temperature of no higher than 100℃. It is widely used in petroleum, metallurgy, dyeing, pharmacy, fertilizer etc.

SZ model has the performance of self priming and suction height is up 5meters.
