• Product Name: FG corrosion resistant stainless steel screw pump
• Model Number: FG60-2
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

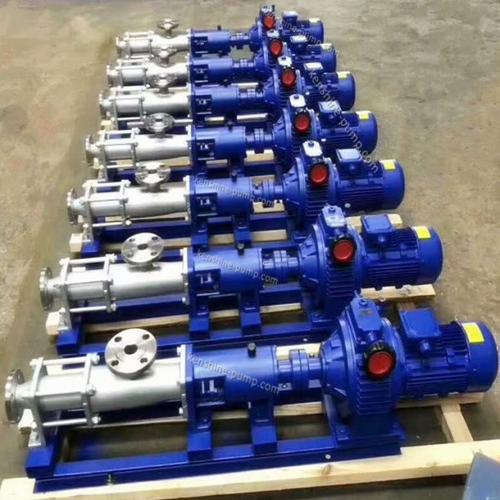

FG corrosion resistant stainless steel screw pump FG60-2 Description

FG Corrosion resistant screw pump is made of stainless steel material and used to transfer the slurry or high viscosity fluids or food pulp etc

FG Stainless steel corrosion resistant screw pump:

The primary operating components of G screw pump are eccentric screw (rotor) and fixed bushing (stator).Choose non-toxic and tasteless edible rubber, operating temperature can reach 120 degrees Celsius, if you need the rotor and stator with high temperature 120 degrees Celsius - 350 degrees Celsius, please contact our company.Because the two parts constitute a separate sealed cavity.  Media from the axial uniform promotion activities. The internal flow rate is low and the volume is constant. The pressure is steady, so there is no turbulence and agitation. The output pressure of each stage pump is 0.6mpa -- 1.2mpa, the head is 60m -- 120m(clear water), and the self-priming height is usually above 3m.

Working principle and features:

Stainless steel screw pump is a new type of screw pump working according to the principle of rotary engagement positive displacement. The main working parts of stainless steel screw pump are eccentric screw (rotor) and fixed bushing (stator).Due to the special geometric beginning of the two parts, separate sealed cavity is formed respectively. The medium flows evenly through the axial direction. Internal flow rate is low and volume remains constant. Stainless steel screw pump pressure is stable, so there will be no vortex and agitation.

The output pressure of each stage of corrosion resistant screw pump is 0.6mpa, the head is 60m (clean water), and the self-priming height is generally above 3m.The stator is made of a variety of elastic materials, so this pump is used to transfer the high viscosity fluid and medium containing hard suspended particles or fiber etc impurity. The flow rate of G screw pump is proportional to the speed.

Stainless steel screw pump has the features of compact structure, small volume, easy maintenance. Good adaptability to medium, steady flow, small pressure pulsation, high self - suction capacity. Working temperature up to 120℃, if need to transport 120℃-350℃ high temperature medium, we can specially make them.

G Stainless steel screw pump is widely used in food, metallurgy, papermaking, printing and dyeing, chemical industry, fertilizer, pharmaceutical and other industrial sectors.
