Electromagnetic Valve FCD.3-488 FCD.3-488 Description

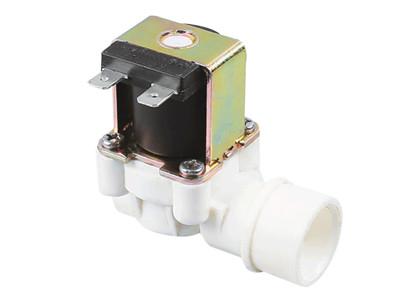

Electromagnetic Valve FCD.3-488

PRODUCT DESCRIPTION

Spec.: FCD.3-488

Type: Smart Sanitary Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the "model meaning".

2. If the user has special needs, please specify when ordering.

Application:

Smart Sanitary Solenoid Valve is mainly used in intelligent bathroom, intelligent toilet,smart bidet,intelligent urinal and so on. At present, we usually supply these solenoid valves to intelligent toilet manufacturers from home and abroad.

Advantage:

The effect of pressure reducing is stable

The starting performance of the electromagnetic valve is good

The structure design of the electromagnetic valve is simple

The volume of the electromagnetic valve is small

It is convenient for producing and testing

Specification:

Model：

FCD.3-488

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure：

0.05～0.8Mpa

Inlet：

Φ19

Medium temperature:

0～50℃

Outlet：

Φ15

Water pressure:

0.05Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
