• Product Name: DLY Vertical submerged multistage oil pump
• Model Number: DLY12-15*6
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 1000sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

DLY Vertical submerged multistage oil pump DLY12-15*6 Description

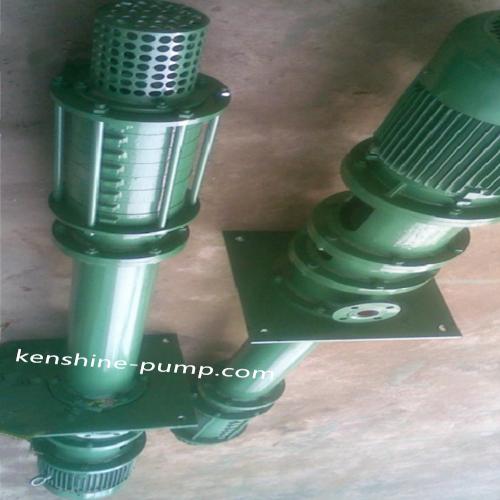

DLY Vertical submerged multistage oil pump
DLY submerged multistage pump is a new type of oil collecting pump in oilfields. The pump covers the small area and facilitate the field installation and have the convenient maintenance and operation. DLY submerged multistage pumps can fully meet the needs of oil collection and discharge of dirty oil and sewage etc.
DLY submerged multi-stage pump is used for conveying oil and oil-water mixed medium collected by oil well and oil station. It is also suitable for oil pipeline. It can meet the requirements of oil production plant, chemical plant, oil refinery and other units for conveying various kinds of oil.
It can also be used for conveying clean water and similar medium.
Performance range:
Flow range: 5-300m3/h lift range: 15-300m viscosity range: 0-60cst(centistoke) medium temperature: 0-200 ° c
Vertical submerged multi - stage pump characteristics
DLY multistage submerged pump is for vertical single-suction multi-stage sectional centrifugal pump. DLY pump suction inlet is in the lower and vertical down and the outlet center is horizontally arranged.
This series of pumps have the advantages of small volume, small floor area, low noise, no radial force when the radial guide vane runs, stable operation, high efficiency, less exposed parts, etc.
Multistage submerged pump driving
The multistage pump is driven by an outdoor vertical explosion-proof motor mounted on the motor frame and driven by a coupling. The pump rotates counterclockwise from the motor end.
multistage submerged pump shaft seal
The multistage pump adopts the packing seal of the shaft structure in the low pressure area, which is safe and reliable without leakage.
Submerged multistage pump bearing and balancing device
The upper part of the pump shaft is supported by the double row centripetal thrust ball bearing, the lower part of the pump shaft is supported by the wear-resistant alloy sliding bearing, the axial force of the pump is balanced by the balance drum or balance hole, the residual axial force,
Borne by the upper bearing. The upper bearing is lubricated with grease or dilute oil, and the sliding bearing is lubricated by the medium being conveyed.
the material of multi-stage submerged pump can be selected according to different media of users, ductile iron qt600-3, stainless steel 1Cr18Ni9Ti or cast iron HT200 etc.
