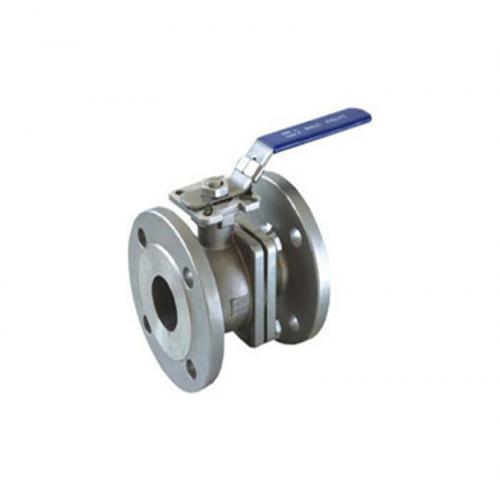

DIN FLANGE STAINLESS STEEL BALL VALVE XT006 Description

DIN FLANGE STAINLESS STEEL BALL VALVE,3PC Thread Forged Ball Valve,API Flange Cast Steel Gate Valve Factory

3PC Thread Forged Ball Valve

API Flange Cast Steel Gate Valve Factory

Features:

Size Range:

1/2" up to 12"

Pressure Range:

PN16 To PN63

End Connection:

BW,RF

Operate:

Lever,Gear,Actuator

Material:

Stainless Steel

Seals:

Soft Seal

Standards:

Valves Design:

DIN 3357

Face to Face:

DIN 3202-F4

End Connection:

EN1092-1

Testing&Inspection:

EN12266

Suitable Medium:

Water,Oil,Air And Some Corrosive liquid

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status

Application scope: petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering and other industries.
