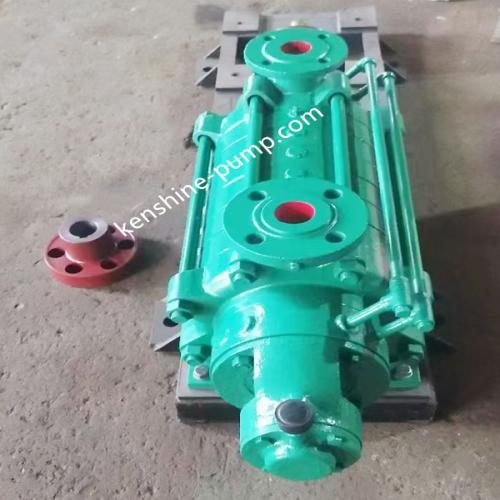

• Product Name: DG boiler feed water pump
• Model Number: DG12-25*6
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

DG boiler feed water pump DG12-25*6 Description

Horizontal multistage boiler feed water pump

DG type self-balancing multistage boiler feed water pump is a common horizontal centrifugal pump used with the boiler. This type of centrifugal pump adopts the hydraulic model with high efficiency and energy saving, and has the characteristics of wide performance range, high operating efficiency and long service life, replacing the old GC type boiler feed pump. DG type self-balancing boiler feed pump adopts horizontal installation and multistage stage type on the structure, with stable operation and convenient installation and maintenance.

This type of centrifugal pump is mainly composed of inlet and outlet section, middle section, guide vane, impeller, shaft, shaft sleeve, bearing, bearing body, seal, etc. It is mainly used in industrial boiler drainage, chemical smelting, paper industry, water conservancy engineering and other industries.

Pump material: cast iron, cast steel , Mechanical seal or gland packing seal

The temperature of the medium conveyed by DG type pump is not more than 105 degree celsius, which is suitable for small boiler feed water or conveying similar to hot water.
