• Product Name: DBY stainless steel electric diaphragm pump
• Model Number: DBY-100
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

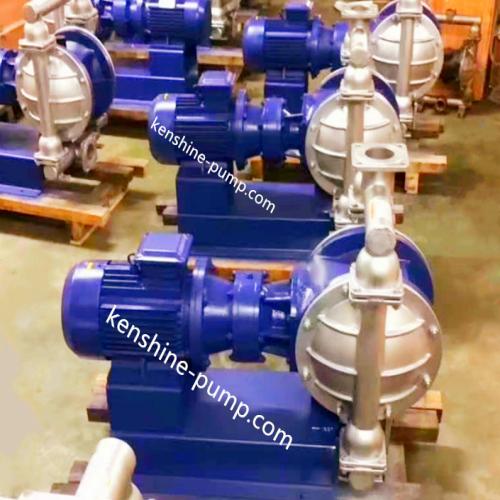

DBY stainless steel electric diaphragm pump DBY-100 Description

DBY electric diaphragm pump is with XLD series cycloidal reducer as drive power. Electric diaphragm pump is a new type of pump to replace centrifugal pump, screw pump for application in petrochemical, ceramics, metallurgy and other industries. Pump outlet pressure : 3 KGF/cm2 .

Main application of DBY electric diaphragm pump:

1. Various highly toxic, flammable and volatile liquids.

2. Various strong acids, bases and corrosive liquids.

3, can transport the medium of higher temperature 150℃.

4, as a pre-stage pressure feeding device for various filter press..

5. Hot water recovery and circulation.

6. Loading and unloading of oil tanker, oil depot and oil products.

7. Pump pickle jam, mashed potatoes, chocolate, etc.

8, pump suction paint, gum, pigment adhesive.

9, all kinds of porcelain glaze slurry cement grouting mortar.

10, a variety of rubber slurry latex, organic solvents, fillers.

11. Use the pump to clear the warehouse for tankers and barges and absorb the sewage and residual oil in the warehouse.

12, hops and baking powder pulp, syrup, molasses.

13. Pump sewage and sediment in mines, tunnels, tunnels and sewers.

14. Suction of various special media.

Technical parameters:

Flow: 0-20m3/h;

Head: 30m;

Power: 0.37-4kw;

Speed: 1450r/min;

Caliber: 10-100mm;

Operation Temperature: -15-150 ℃;

Suction height: 3-5m.
