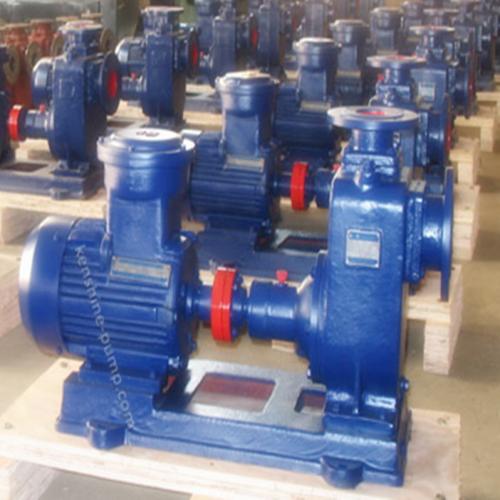

CYZ Self priming oil transfer pump unloading pump
- Product Name: CYZ Self priming oil transfer pump unloading pump
- Model Number: 25CYZ-A-32
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1SET
- Supply Capacity: 1000Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
CYZ Self priming oil transfer pump unloading pump 25CYZ-A-32 Description
CYZ-A Single stage single suction self priming centrifugal oil pump is used as a fuel oil loading pump. CYZ-A Self priming centrifugal oil ump is designed to transfer diesel and gasoline etc fuel oil. The pump is made of cast iron pump case and bronze impeller and equipped with explosion proof motor to safely convey diesel, gasoline etc fuel oil and other liquid with low flashing point. The pump may be driven by diesel engine.
Self-priming design, no need bottom valve in suction pipeline and suction height is up 5meters.
CYZ-A self priming centrifugal oil pump has the advantages such as simple structure and convenient operation and steady running and large discharge capacity and high efficiency and low noise and long life etc. The pump has the strong self priming performance and suction pipeline need not install foot valve. It is widely used to transport gasoline,kerosene,diesel oil, oil for aviatin in oil warehouse,oil station,oil tanker,dock,tank truck,airdrome etc. It can also be used in chemical industry,pharmaceutics,brewage,electroplate,printing and dyeing,papermaking,electric power,mine etc.
Medium temperature range:-20 celsius degree to 80 celsius degree, viscidity≤100centipoise,Particles consistency can reach 30%.
Parameter:
Model
Capacity
Head
(m)
Suction height
(m)
Speed
(r/min)
Power
(KW)
Caliber mm
(m3/h)
(L/S)
Inlet
Outlet
25CYZ-A-20
3.2
0.9
20
6.5
2900
0.75
25
25
25CYZ-A-32
3.2
0.9
32
6.5
2900
1.1
25
25
40CYZ-A-20
6.3
1.8
20
6.5
2900
1.1
40
32
40CYZ-A-40
10
2.8
40
6.5
2900
4
50
40
50CYZ-A-12
15
4.2
12
6.5
2900
1.5
50
50
50CYZ-A-20
18
5
20
6.5
2900
2.2
50
50
50CYZ-A-35
14
3.9
35
6.5
2900
4
50
50
50CYZ-A-40
10
2.8
40
6.5
2900
4
50
50
50CYZ-A-50
12.5
3.5
50
6.5
2900
5.5
50
50
50CYZ-A-60
15
4.2
60
6.5
2900
7.5
50
50
50CYZ-A-75
20
5.6
75
6.5
2900
11
50
50
65CYZ-A-15
30
8.3
15
6.5
2900
3
65
50
65CYZ-A-32
25
6.9
32
6
2900
5.5
65
50
80CYZ-A-13
35
9.7
13
6
2900
3
80
65
80CYZ-A-17
43
12
17
6
2900
4
80
65
80CYZ-A-22
40
11.1
22
6
2900
5.5
80
65
80CYZ-A-25
50
13.9
25
6
2900
7.5
80
80
80CYZ-A-32
50
13.9
25
6
2900
7.5
80
80
80CYZ-A-55
60
16.7
55
6
2900
18.5
80
80
80CYZ-A-70
60
16.7
70
6
2900
22
80
80
100CYZ-A-20
100
27.8
20
6
2900
11
100
80
100CYZ-A-40
100
27.8
40
6
2900
22
100
100
100CYZ-A-40A
100
27.8
40
6
1450
22
100
100
100CYZ-A-65
100
27.8
65
6
2900
30
100
100
100CYZ-A-75
70
19.4
75
6
2900
30
100
100
150CYZ-A-45
170
47.2
45
5
2900
37
150
100
150CYZ-A-55
170
47.2
55
5
2900
45
150
100
150CYZ-A-65
170
47.2
65
5
2900
55
150
100
150CYZ-A-80
160
44.4
80
5
2900
55
150
100
200CYZ-A-63
280
77.8
63
5
1450
90
200
150
250CYZ-A-50
400
111.1
50
5
1450
90
250
200
300CYZ-A-50
500
138.9
50
5
1450
110
300
250
| Flow rate | 2-600m3/h |
|---|---|
| Head | 3-80m |
| pump material | cast iron case,bronze impeller, explosion-proof motor |
| centrifugal pump | self priming pump |
| transfer pump | UNLOADING PUMP |
| circulating pump | fuel pump |
| diesel oil pump | gasoline pump |
| china pump | kenshine-pump |
