• Product Name: CS Vertical submerged chemical centrifugal pump
• Model Number: CS-20EP-250
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1SET
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

CS Vertical submerged chemical centrifugal pump CS-20EP-250 Description

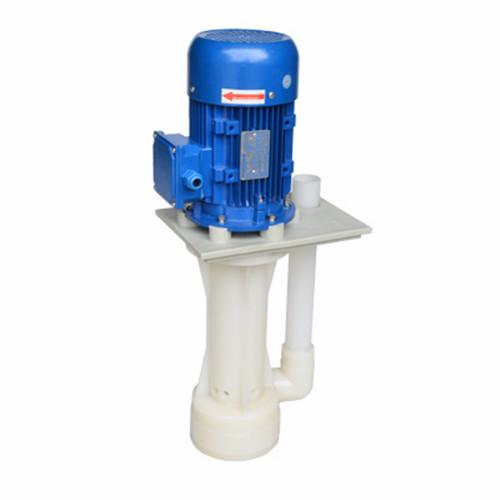

CS Vertical submerged chemical centrifugal pump

Can idle, continuous electroplating preferred vertical chemical pump

• product specifications :(50Hz)

• motor power: 50-120w

• full flow rate: 50-70 L/min

• full head: 3-3.8m

• main materials: FRPP, PVDF

• suitable temperature: 0 to 75 degree Celsius(FRPP), 0 to 90 degree Celsius (PVDF)

• product name acid and alkali resistant vertical pump, coating pre-treatment submersible pump, in-tank vertical pump, engineering plastic vertical pump, corrosion resistant submerged pump, etc

Product features:

1. It can be used idling without damage due to idling

2. All the flow parts of the pump are made of corrosion-resistant FRPP, CFRPP and PVDF, depending on the chemical liquid delivered

3. Lightweight appearance and installation plate design are most suitable for use in the groove, and piping and maintenance are very convenient

4. The shaft seal design can prevent the chemical gas from damaging the motor bearing, and the free chemical gas can be discharged smoothly through the air hole on the support plate

5. Closed impeller, its installation and steering independent

6. The pump shaft is equipped with a protective sleeve

7. Reinforced bearing, can resist axial and radial stress

8. Double anti-corrosion coating

Vertical   submerged chemical pump    50HZ    60HZ    Pump

Model    Outlet(mm)    Phase    HP    Max.Head(m)    Max.flow(L/Min)    Max.Head(m)    Max.Flow(L/Min)    Weight(KG)

CS-20EP-180    20    1    1/4    5    90    6    110    8

CS-20EP-180    20    3    1/4    5    90    7    110    8

CS-20EP-250    20    1    1/3    6    105    7    130    8.5

CS-20EP-250    20    3    1/3    6    105    7    130    8.5

CS-25EP-370    25    1    1/2    7    135    8    150    9.5

CS-25EP-370    25    3    1/2    7    145    8    160    9.5
